Gas station site plan standards: the regulatory landscape developers must navigate

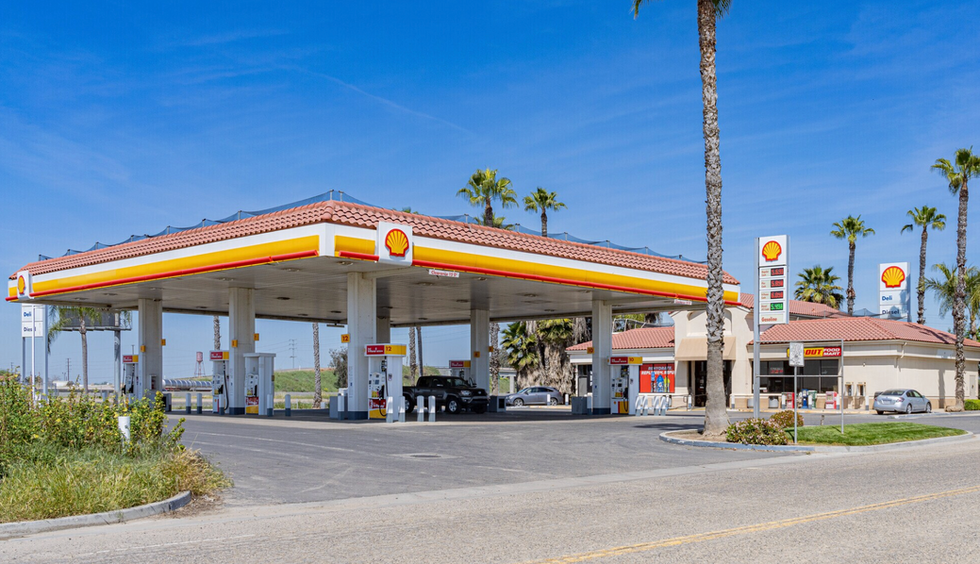

Large-format gas station canopy with multi-position fuel islands and convenience store.

Building a gas station in the United States requires compliance with a layered matrix of federal, state, and local regulations that vary dramatically by jurisdiction — from Houston's near-zero zoning barriers to Los Angeles's multi-year entitlement gauntlet. The regulatory framework spans EPA underground storage tank rules (40 CFR Part 280), NFPA 30A fire safety codes, International Fire Code Chapter 23, state environmental agency requirements, and municipal zoning ordinances that increasingly restrict new fuel retail development. Total development costs range from $2.5 million for a small 6-pump station to $10 million+ for a 12-position facility, with environmental compliance alone consuming $50,000–$500,000 depending on site conditions and jurisdiction. The industry stands at an inflection point: the U.S. convenience store count declined for the second consecutive year to 151,975 stores in 2025, while cities from Denver to Petaluma enact geographic buffers and outright bans on new stations.

Federal UST regulations set the compliance floor, not the ceiling

The EPA's 40 CFR Part 280 governs approximately 542,000 active regulated underground storage tanks nationwide, down from 2.1 million when the program launched in 1985. A critical distinction for developers: federal UST rules do not prescribe specific setback distances from buildings, property lines, or water features. Those requirements cascade from NFPA 30A, state fire codes, and local zoning — creating a patchwork that demands jurisdiction-by-jurisdiction analysis.

The 2015 UST Rule (80 FR 41566, effective October 13, 2015) represented the first major overhaul since 1988. All tanks and piping installed or replaced after April 11, 2016 must be double-walled with interstitial monitoring (§280.20). Under-dispenser containment became mandatory for new or replaced dispenser systems. The rule also prohibited ball float valves for new overfill protection installations and introduced three classes of required operator training (Class A for management, Class B for daily operations, Class C for emergency response), all due by October 13, 2018.

Overfill protection operates on a tiered system: automatic shutoff devices activate at ≤95% of tank capacity, high-level alarms trigger at ≤90% capacity, and flow restrictors (where grandfathered) engage at ≤90% capacity or 30 minutes before overfill. Leak detection performance standards require methods capable of detecting 0.1 gallons per hour (tank tightness testing) to 0.2 gallons per hour (automatic tank gauging, statistical inventory reconciliation), with probability of detection at 0.95 and probability of false alarm at 0.05. Pressurized piping demands dual-method monitoring: an automatic line leak detector sensing 3 gallons per hour at 10 psi within one hour, plus monthly interstitial monitoring or annual tightness testing.

Financial responsibility minimums stand at $1 million per occurrence for petroleum marketing facilities handling over 10,000 gallons monthly, with annual aggregate requirements of $1–$2 million depending on tank count. No major amendments to Part 280 have been finalized since 2015 — a proposed E15 compatibility rule (86 FR 5099, January 2021) remains pending. The EPA's LUST Trust Fund, financed by a 0.1-cent-per-gallon fuel tax, allocated $62 million in FY2025 for cleanup of the roughly 54,000 contaminated sites still awaiting remediation from a cumulative 581,676 confirmed releases.

Fire codes establish the physical geometry of every fuel island

NFPA 30A and the International Fire Code jointly dictate the spatial relationships that define gas station site plans. These dimensional requirements are non-negotiable starting points for any development:

Parameter	Minimum Requirement	Code Reference
Canopy clearance height	13 ft 6 in (4,115 mm)	IBC §406.7.2
Dispenser to property/lot line	10 ft (3,048 mm)	IFC §2303.1
Dispenser to combustible building	10 ft (3,048 mm)	IFC §2303.1
Dispenser to 1-hr rated noncombustible building	5 ft (hose-reach limit)	IFC §2303.1
Dispenser to fixed ignition source	20 ft (6,096 mm)	IFC §2305.4
UST to building/property line	3 ft (914 mm)	IFC §5704.2.11.2
UST to adjacent UST	1 ft (305 mm)	IFC §5704.2.11.2
Tank vent pipe above grade	12 ft (3,658 mm)	IFC §5704.2.7.3.4
Emergency shutoff from dispensers	20–100 ft	NFPA 30A §6.7.2
Smoking prohibition zone	20 ft from dispensers	IFC §2305.4
No-smoking/ignition buffer from LP-gas	25 ft from combustible structures	IFC §2206

Emergency shutoff switches must be manually resettable only — no automatic reset permitted. Each dispenser requires an approved automatic emergency shutoff valve (shear/breakaway valve) designed to close upon fire or impact, checked annually by manually tripping the hold-open linkage. Fire extinguisher placement requires minimum 10-pound ABC dry chemical units within 75 feet of dispensing areas (NFPA 30A §9.2.5), with IFC specifying a minimum 2-A:20-B:C rating.

Electrical classification creates invisible but legally critical zones around every dispenser. The NEC Table 514.3(B)(1) designates a Class I, Division 2 area extending 20 feet horizontally from dispenser enclosures and 18 inches above grade — all electrical equipment within this envelope must be rated for hazardous locations. Division 1 zones apply within 3 feet of tank vent openings, with Division 2 extending to 5 feet. Dispenser islands must provide 6-inch minimum height concrete curbing for impact protection, supplemented by bollards (4-inch steel pipe filled with concrete, buried 3 feet deep, spaced ≤4 feet on center).

Canopy construction must use noncombustible materials or provide 1-hour fire resistance per IBC. While the model IFC does not universally mandate fire suppression under canopies, many jurisdictions add this requirement — particularly for unattended self-service stations. When required, activation must automatically transmit alarm to an approved receiving station.

Municipal requirements create a 3x cost and timeline spread across jurisdictions

The gap between the most permissive and most restrictive U.S. markets is staggering. Houston developers can secure permits in 3–6 months with no use-based zoning review, while Los Angeles projects routinely consume 12–24+ months navigating conditional use permits, CEQA environmental review, and SCAQMD air quality permits. This variance fundamentally shapes development economics and site selection strategy.

Houston, TX operates without traditional zoning ordinances. Gas stations face no use-classification barriers — development is governed by Chapter 42 subdivision rules, deed restrictions, and state TCEQ requirements (30 TAC Chapter 334). Front setbacks on major thoroughfares typically run 25 feet; the city defers fuel island and UST setbacks entirely to the state fire code. TCEQ requires double-walled tanks with leak detection and Stage I vapor recovery, but not Stage II.

Los Angeles, CA requires a Conditional Use Permit (LAMC §12.24 W.2) in all commercial zones where stations are even possible (C1.5, C2, C4, M1-M3). Sites must abut a major or secondary highway, and no station activities may occur within 20 feet of any residential zone. CEQA environmental review, SCAQMD Rule 461 vapor recovery compliance, and CARB Enhanced Vapor Recovery systems compound both cost and timeline. Multiple California cities — Petaluma, Rohnert Park, Sebastopol, and others — have enacted permanent bans on new gas station construction, with Los Angeles considering similar legislation.

Chicago, IL enacted Ordinance O2025-0018183 in early 2025, creating what amounts to a de facto moratorium in most commercial districts. The law removed gas stations from B3, C1, and C2 zoning districts, restricted them to C3, DX, DS, and manufacturing zones, and imposed a 1,000-foot separation requirement from existing stations. All new stations require Special Use approval with public hearings and aldermanic support.

Phoenix, AZ remains relatively permissive, with gas stations permitted by right in C-1, C-2, and C-3 commercial zones. Pump islands must maintain 12 feet from street property lines (§701.A.7), and C-3 zone structures require 30-foot setbacks from residential district boundaries with mandatory 6-foot solid fencing. The city's Transit-Oriented Development (TOD-1) overlay permanently prohibits gas stations near light rail corridors. Desert landscaping standards require minimum 7% landscape coverage.

Atlanta, GA permits stations in C-1 and C-2 commercial zones with pump island setbacks of 12 feet from street lines and 25 feet from intersections (§16-28.008). Canopies may occupy required yards but must remain 6 feet from right-of-way and unenclosed on three sides. The BeltLine overlay and 20+ Special Public Interest districts effectively restrict auto-oriented uses across the city's major growth corridors.

Miami-Dade County, FL adds extreme weather resilience requirements unique among major markets. Canopies must withstand 185 mph wind speeds under the High Velocity Hurricane Zone designation, with all structural components requiring Miami-Dade product approval (NOA certification). Gas stations must file emergency plans guaranteeing fuel pump operation within 24 hours of a declared emergency, necessitating permanent or temporary generator capacity. Much of the county falls within FEMA Special Flood Hazard Areas, requiring finished floor elevations at or above Base Flood Elevation plus freeboard.

New York City permits stations as-of-right only in C8 and M1-M3 manufacturing districts, requiring BSA Special Permits in C2 and C4-C7 zones (Section 73-211). The BSA process demands minimum 7,500-square-foot lots and 5-car reservoir (stacking) capacity beyond pump positions, with total timelines of 12–24+ months including CEQR environmental review. Manhattan's zoning effectively precludes new development.

Dallas, TX is among the most permissive major markets, with motor vehicle fueling stations permitted by right across CR, RR, CS, LI, and multiple mixed-use districts without SUP requirements. Truck stop fuel pump islands must maintain 18 feet from site boundaries; residential adjacency triggers a 20-foot buffer.

Denver, CO enacted the most aggressive recent municipal restriction through Bills 241866/241867 (effective February 25, 2025), prohibiting new retail gas stations within ¼ mile of existing stations, within ¼ mile of rail transit, and within 300 feet of residential zones. QuikTrip's legal challenge failed when a district court upheld the law as constitutional in July 2025.

New Jersey and New England represent the strictest environmental compliance regimes

New Jersey's regulatory framework stands apart from every other state. The NJDEP's UST regulations (N.J.A.C. 7:14B) mirror and expand federal rules, but the state's unique Industrial Site Recovery Act (ISRA) transforms every gas station property transaction. ISRA requires environmental investigation — and remediation if contamination is found — upon any sale, transfer, closure, or corporate reorganization of industrial establishments that handle hazardous substances. Gas stations are categorically subject. The process demands filing a General Information Notice, engagement of a Licensed Site Remediation Professional (LSRP), and completion of Preliminary Assessment through Response Action Outcome — adding 6–18+ months and $50,000–$500,000+ to any transaction. New Jersey also mandates Stage II vapor recovery statewide and maintains vapor intrusion screening requirements that can trigger sub-slab depressurization systems for buildings near petroleum storage.

New England's approach is fragmented but cumulatively restrictive. Massachusetts created a 10-municipality fossil fuel-free pilot program under its 2022 Clean Energy Law, with communities including Brookline, Cambridge, Lexington, and Newton implementing bans on fossil fuel infrastructure in new construction. Vermont's Act 250 subjects gas station development to review against 10 criteria — including water/air pollution, traffic, aesthetics, energy conservation, and greenhouse gas emissions — for any commercial project exceeding 1 acre in towns without zoning bylaws. While Act 250's 98% approval rate suggests it is not a de facto ban, conditions imposed can substantially increase costs.

Development economics favor larger formats as compliance costs scale

The total cost structure for gas station development reflects a clear economy of scale, with fixed regulatory and environmental costs spread across more fueling positions in larger formats:

Cost Component	Small (6-pump)	Mid-size (8-pump)	Large (12-pump)
Total development	$2.5M–$4.5M	$4.5M–$7.0M	$7.0M–$10M+
Land acquisition	$50K–$750K	$250K–$1M	$500K–$1M+
UST installation (per 10K-gal tank)	$25K–$50K	$25K–$50K	$25K–$50K
Full fuel system (tanks + dispensers + piping)	$300K–$400K	$400K–$500K	$500K–$600K
Canopy (design + installation)	$35K–$80K	$80K–$150K	$150K–$200K+
Secondary containment compliance	$20K–$50K	$20K–$50K	$30K–$60K
Environmental compliance (new site)	$25K–$75K	$25K–$75K	$50K–$100K
Dispenser cost (per unit)	$16K–$25K	$16K–$25K	$16K–$25K
C-store build-out (per sq ft)	$50–$100	$50–$100	$50–$100

Environmental due diligence alone runs $2,000–$5,000 for Phase I ESAs and $5,800–$25,000 for Phase II assessments with soil and groundwater sampling. UST removal at existing sites costs $10,000–$25,000 per tank, with contaminated soil disposal at $140–$450 per ton. The EPA's national average LUST cleanup cost is $154,000 per site, but groundwater contamination cases regularly exceed $1 million. Pollution liability insurance premiums range from $500 to $10,000+ annually, escalating sharply at 30-year and 40-year tank age milestones.

Mega-format operators like Buc-ee's operate on an entirely different cost plane: $30–$50 million+ per location for 50,000–74,000-square-foot travel centers with 120 fueling positions on 30-acre sites. These projects generate approximately 250 full-time jobs per location and are reshaping competitive dynamics across the Southeast and Midwest.

ADA, vapor recovery, and impervious surface rules add compliance layers

ADA compliance at fuel dispensers follows the 2010 ADA Standards (§228, §308, §309). At least one of each type of fuel dispenser must be accessible, with operable parts (grade selection buttons, card readers, help buttons) mounted at a maximum 48-inch reach height in new construction (54 inches permitted for existing curb-mounted dispensers). Accessible routes require minimum 36-inch width, maximum 5% running slope, and firm, stable, slip-resistant surfaces. Gas stations must provide refueling assistance upon request and charge self-service prices regardless of which pump is used.

Vapor recovery requirements split along a California/rest-of-nation divide. CARB's Enhanced Vapor Recovery (EVR) program remains the strictest in the country, though the phase-in of federal Onboard Refueling Vapor Recovery (ORVR) on vehicles has led CARB to phase out Stage II requirements for some stations. New Jersey mandates Stage II statewide (NJAC 7:27-16.3). Most other states require only Stage I (tank filling) vapor recovery, relying on vehicle ORVR systems to capture dispensing vapors. Installation costs range from $5,000–$15,000 per tank for Stage I to $15,000–$60,000+ total per site where Stage II is required.

Impervious surface limits are governed primarily by stormwater management requirements rather than zoning codes in most jurisdictions. Gas stations are inherently high-impervious-coverage uses, with fuel islands, drive aisles, parking, and canopy footprints consuming 70–90% of typical sites. Stormwater permits (NPDES/state equivalent) require pollution prevention plans, oil-water separators, and retention/detention systems. SPCC plans under 40 CFR Part 112 apply to facilities with aggregate aboveground storage exceeding 1,320 gallons that could discharge to navigable waters.

Parking ratios for convenience store components typically follow general retail standards: 1 space per 200–300 square feet of retail floor area, varying by jurisdiction. Stacking lane requirements — where codified — range from 2 to 5 vehicles per lane, with NYC's BSA requiring a 5-car reservoir capacity beyond pump positions. Average new-build convenience store sizes have grown to 3,520 square feet total (2,675 square feet of sales area), with chain operators increasingly building 5,000–7,000-square-foot formats featuring expanded food service.

The industry's structural shift reshapes what developers must plan for

The U.S. convenience store count reached 151,975 stores as of December 31, 2025 — down 280 stores year-over-year, marking the second consecutive annual decline. Yet 122,620 stores now sell fuel, the highest number in eight years. The paradox reflects consolidation: single-store operators (60% of the market) are closing while major chains expand aggressively. Wawa and QuikTrip each opened more than one new store per week in 2025. Casey's plans 345 new stores over three years.

Convenience stores sell approximately 80% of all fuel purchased in the United States, generating $837.4 billion in industry sales in 2024. But the economic engine is shifting: fuel contributes only 1–2% net margins while in-store merchandise delivers 5.7–27.1%. This reality drives the industry's clear architectural trend toward larger stores with enhanced food service, drive-throughs, and experiential retail — features that demand bigger sites and more complex entitlements.

EV charging integration is accelerating from novelty to necessity. The U.S. EV charging infrastructure market reached $5.09 billion in 2024 with a projected 30.3% compound annual growth rate through 2030. Over 78,000 public charging stations with 236,000 ports are now operational. PEI published RP1800-25 specifically addressing EV charging equipment installation at motor fueling facilities. DC fast charger costs run $28,000–$250,000+ per site depending on power level (50 kW to 350 kW), with federal tax credits covering up to 30% of commercial installations. The NEVI program funds stations every 50 miles on interstate highways, creating both opportunity and competitive pressure for traditional fuel retailers.

Solar canopy installations, alternative fuels (E85, CNG, hydrogen, DEF), and net-zero building requirements in markets like Denver and Seattle signal that the gas station site plan of 2030 will look fundamentally different from today's. Developers and lenders underwriting projects with 20–30-year investment horizons must factor this trajectory into every site plan approval they pursue.

Conclusion

Gas station development navigates a regulatory environment where federal rules establish minimum technical standards (40 CFR Part 280 for tanks, NFPA 30A/IFC for fire safety), but municipal requirements drive the actual development timeline and cost. The spread between Houston's 3–6-month permitting cycle and New York City's 12–24+ month process represents millions of dollars in carrying costs and opportunity cost. Denver's 2025 buffer-zone law, Chicago's district restrictions, and California's proliferating construction bans represent a clear national trend toward geographic containment of new fuel retail — even as chains invest billions in expansion. For developers, the actionable insight is that site-specific regulatory mapping must precede any land acquisition, and the most defensible projects will integrate EV infrastructure, larger-format retail, and resilient design from the outset. For lenders, environmental compliance costs — particularly in ISRA-governed New Jersey and LUST-heavy legacy markets — remain the single largest source of underwriting risk, with cleanup liabilities that can exceed property values by multiples.

Sources:

• U.S. EPA, 40 CFR Part 280 — Technical Standards for Underground Storage Tanks

• U.S. EPA, LUST Trust Fund Program Documentation

• NFPA 30A — Code for Motor Fuel Dispensing Facilities and Repair Garages

• International Fire Code (IFC), Chapter 23 — Motor Fuel-Dispensing Facilities

• California State Water Resources Control Board — UST Program

• California Air Resources Board (CARB) — Enhanced Vapor Recovery Program

• NACS — State of the Industry Report

• Innowave Data — Gas Station Development Cost Benchmarks

• CSP Daily News — U.S. Convenience Store Count Reports

• Grand View Research — U.S. EV Charging Infrastructure Market
