Site Plan vs Plot Plan vs Floor Plan: Key Differences, Uses, and Best Practices (U.S. Perspective)

Introduction: In real estate development and architecture, professionals rely on a variety of plan drawings to visualize and execute projects. Three fundamental plan types – site plans, plot plans, and floor plans – each serve distinct purposes. Confusion can arise because these terms are sometimes used interchangeably, yet they refer to different scopes of planning documents. This comprehensive guide will clearly define each type of plan with examples, explain their purposes and components, highlight differences in scope and detail, discuss U.S. regulatory implications (zoning and building codes), and outline best practices for developers, architects, and investors. By understanding how site, plot, and floor plans differ and how they fit into the development lifecycle, industry stakeholders can ensure smoother project approvals, compliance with laws, and successful project outcomes.

What Is a Site Plan?

A standard site plan for a single-family home, showing the building footprint, yard features, and setback dimensions. A site plan is a scaled drawing that shows an entire property’s layout from an overhead perspective. It depicts existing and proposed structures in relation to the property boundaries, as well as external features like driveways, parking areas, landscaping, and utilities. In essence, a site plan provides a comprehensive map of everything on the site, illustrating how the building(s) and improvements sit within the lot and interact with the surrounding environment.

Components of a Site Plan: Site plans vary in detail depending on the project and local requirements, but common elements include:

• Property Boundaries and Setbacks: Clearly drawn lot lines with dimensions, and indications of setback lines (required minimum distances between structures and property edges per zoning codes).

• Structures and Buildings: Footprints of all existing and proposed buildings on the site, drawn to scale, with labels or outlines indicating their shape and size. For complex developments, multiple structures or even multiple lots can be shown on one site plan.

• Circulation and Parking: Locations of driveways, access roads, walkways, sidewalks, and paved areas. Parking lots or spaces are delineated with counts of parking stalls, loading zones, and vehicular ingress/egress points.

• Landscaping and Open Space: Major landscape features such as lawns, gardens, trees, and buffers. Site plans often indicate planned green spaces, recreational areas, or required landscaping per local regulations.

• Utilities and Easements: Routes of utility lines (water, sewer, electrical, storm drainage) and the location of utility connections or meters. Any easements or rights-of-way (for utilities, access, drainage, etc.) are typically marked to ensure no building encroaches on them.

• Topography and Drainage: Many site plans (especially for larger projects or hilly sites) include topographic contour lines and information on grading. They might show drainage patterns, stormwater management features, retention ponds, or other environmental features as required by code.

• Key Plan Information: A north arrow indicating orientation, a graphic scale (e.g. 1"=20'), and a title block with the project name, site address, owner/developer name, and drawing date. Often, a legal description of the property (lot, block, subdivision, or metes-and-bounds description) is included for identification. Some jurisdictions also require the name/seal of the licensed professional who prepared it (architect, engineer, or surveyor).

Purpose and Usage: Site plans give an overview of the entire site’s design and are used extensively in site development and regulatory approval processes. Key scenarios where site plans are required or useful include:

• Zoning and Permit Approvals: Local governments typically require a detailed site plan before issuing building permits or development approvals. City planners and zoning boards review the site plan to ensure the project complies with zoning regulations (such as land use, density, setbacks, building height, parking requirements, and landscaping standards). For example, a planning department will check that the site plan meets parking minimums and does not violate setback rules. In many U.S. cities, submitting a site plan is part of a formal “Site Plan Review” process codified in the zoning ordinance. The site plan thus becomes a regulatory document demonstrating compliance with land-use laws and environmental ordinances.

• Design and Coordination: Architects, civil engineers, and developers use site plans during the design phase to organize how a building and other site improvements will fit on the lot. It helps in making decisions about building orientation (for sunlight, views, winds), location of entrances relative to street access, placement of ancillary structures (garages, pools, etc.), and site grading. For example, an architect might adjust a building’s placement on the site plan to accommodate a required fire lane or to preserve a large existing tree. Site plans are also critical for coordinating with landscape architects and civil engineers on drainage and utility hookups.

• Large-Scale Developments: For multi-building projects or campuses (such as shopping centers, apartment complexes, or office parks), the site plan provides the bird’s-eye view of the entire development. It can show how different structures relate to each other on the property, including internal roads and common amenities. Even for a single-building project, the site plan situates that building in its broader context (adjacent streets, neighboring properties, etc.).

• Construction Guidance: During construction, the site plan is used by contractors and site engineers to stake out the building location on the ground and to plan site work. It shows where to run underground utilities and where to pave driveways or sidewalks. A site plan can function as a reference for excavation and grading crews (with contour and elevation info) and for utility installers, minimizing costly errors in placing improvements.

• Marketing and Investor Communications: Developers and commercial real estate professionals may include simplified site plans in marketing materials to illustrate the property layout. For instance, a site plan in a brochure for a new housing subdivision will show lot configurations, home footprints, roads, and community amenities (parks, parking, etc.). Investors or lenders reviewing a project often examine the site plan to verify that the project’s scope (number of units, parking count, etc.) matches what is being proposed and allowed on the site. A clean site plan can quickly communicate the overall vision of the development to stakeholders.

Stakeholders Involved: Because site plans touch on many aspects of development, multiple stakeholders rely on them. City planning officials and zoning boards use site plans to evaluate regulatory compliance. Engineers(civil and traffic engineers) use them to design infrastructure like drainage systems and road access. Architects and urban planners use site plans to refine design and ensure the site layout supports the building’s function. Developers and investors review site plans to assess feasibility (for example, verifying that the site can accommodate the desired building size and required parking). Even contractors and project managers use the approved site plan as a guide during construction. In short, the site plan serves as a central reference document that aligns the understanding of everyone involved in the project’s external layout.

Regulatory Considerations: In the U.S., zoning regulations heavily influence site plans. Each municipality has its own zoning code or land development ordinance that specifies lot requirements and site design standards. A site plan submission will typically be evaluated for zoning items such as allowable uses, floor-area-ratio (FAR), lot coverage limits, setback distances, building height, parking ratios, open space requirements, and landscaping/screening mandates. For example, if a zoning district requires a 20-foot front yard setback and a maximum 50% lot coverage, the site plan must graphically demonstrate compliance with those rules (e.g. via drawn setback lines and coverage calculations). Many jurisdictions enumerate required site plan contents in their code. As an example, a city ordinance might demand that a site plan show adjacent roadways and structures, ingress/egress points, utility connections, drainage facilities, and impervious surface calculations. These details ensure the proposed development will integrate properly with public infrastructure and not negatively impact neighbors (through runoff, traffic, etc.).

It’s also common for conditional use permits or variances to require a site plan exhibit. In such cases, the site plan becomes part of the approval and must be followed. Additionally, site plans for commercial projects often need to adhere to accessibility laws (e.g. showing ADA-compliant parking spaces and ramps) and may be reviewed by fire marshals for emergency access (fire lanes, hydrant locations). Once approved, the site plan is usually kept on file by the local government as a record of the permitted site design.

Example: Imagine a developer is planning a new retail store on a vacant lot. They will create a site plan showing the building’s footprint centered on the property with the required setbacks from each property line. The parking lot layout will be drawn, showing the number of parking spaces meeting the city’s minimum parking requirement. Driveway entrances connecting to public streets are shown, possibly with turn lanes if required by traffic codes. Landscaping areas (with any required trees or buffers) are indicated. Utility connections to water, sewer, and electricity are marked. Before construction, this site plan must be submitted to the city’s planning department. City staff will check things like: does the plan respect the 30-foot front setback? Are at least 10% of the parking area landscaped as required? Is there proper drainage so stormwater won’t flood the street? If compliant, the site plan is approved, often as a condition for the building permit. The contractor will then use that site plan to locate the building on the ground (staking out the corners according to the plan’s measurements) and ensure everything is built in the right spot.

What Is a Plot Plan?

A plot plan (also known in some contexts as a lot plan or plat plan) is a scaled diagram of a single property (plot of land) that emphasizes the legal boundaries and the placement of structures and features within that parcel. In many ways, a plot plan is similar to a site plan, but typically on a smaller, more focused scale – usually dealing with one individual lot rather than an entire development. The plot plan shows what is currently on the land (house, garage, fences, etc.) and any proposed new construction or additions, in relation to the property lines. It is often based on a land survey and includes precise measurements of distances and angles.

Components of a Plot Plan: A plot plan shares some elements with a site plan, but with a focus on boundary accuracy and certain site-specific details. Typical components include:

• Property Boundary Survey: The outline of the property (lot) with bearings and distances for each boundary line. Plot plans clearly define the legal boundaries of the parcel with corner markers or coordinates. They often reference lot numbers, subdivision names, or deed references.

• Existing and Proposed Structures: The footprint of the house or building on the lot, plus any other structures like sheds, decks, pools, fences, driveways, etc., are shown to scale. This allows viewers to see the exact position of structures relative to property lines. Plot plans will mark the distances from structures to the nearest property lines – these are the setback dimensions, which verify that buildings comply with required yard setbacks.

• Easements and Rights-of-Way: Any easements (utility easements, access easements, drainage easements) crossing the property are depicted, often with dashed lines and labels. For example, a 10-foot utility easement along the rear lot line would be drawn and noted, indicating an area where no permanent structure can be placed.

• Utilities and Services: The locations of utility lines and connections on the property may be indicated, such as water and sewer lines, septic system layout, well location, electrical service line, etc. For residential plots, this could include the septic drain field or the path of a sewer lateral. Utility poles or underground cable routes might be marked if relevant.

• Topographical or Landscape Features (if required): Sometimes plot plans include major physical features like large trees, significant changes in elevation, retaining walls, or other noteworthy land features – especially if these affect where a structure can be placed. However, many simple plot plans for flat suburban lots might omit detailed topography and focus mainly on horizontal dimensions.

• Key Measurements and Labels: Critical dimensions are a hallmark of plot plans. They typically label the distance from each building corner to the adjacent property line (for all four sides of a house, for instance). They also label the dimensions of new structures. If an addition is planned, the plot plan might highlight the new addition’s footprint and its setbacks. A north arrow and drawing scale are provided. The title block might include the homeowner’s name, project address, the draftsman or surveyor’s name, and date. In some cases, a plot plan used for permit must be stamped by a licensed surveyor or engineer to certify accuracy.

Purpose and Usage: The primary purpose of a plot plan is to verify that the improvements on a lot comply with local land use regulations and to guide placement of new construction. Key usage scenarios include:

• Building Permit Applications: When applying for a building permit for new construction, an addition, or significant alteration, many U.S. jurisdictions require a plot plan (or simplified site plan) as part of the submission. The plot plan demonstrates that the proposed construction will meet zoning requirements such as setbacks, lot coverage, and height limits. For example, if you plan to add a garage or extend a room, the plot plan will show the new footprint and its distance to the property lines, proving it stays within the setback limits. Municipal permit reviewers use this to grant zoning approval for the project. In some locales, this document might be called a “Zoning Compliance Plan” or similar, but it serves the same purpose – showing the project fits on the lot legally.

• Mortgage and Real Estate Transactions: Plot plans are often used during real estate sales or refinancing. Lenders may request a mortgage plot plan or survey to ensure that the property’s improvements (house, garage, etc.) do not encroach outside the lot or violate zoning. This helps the bank confirm that there are no boundary or encroachment issues that could affect property value or title. For instance, a mortgage plot plan might reveal if a neighbor’s fence is over the line or if a shed was built too close to the lot edge. In some regions, a “plat of survey” showing the house location on the lot is a standard part of closing documents for a home sale.

• Land Development and Subdivisions: When a larger tract of land is subdivided into smaller lots, each new lot will have a plat (official map) recorded, and individual plot plans may be used to plan specific house placement on each lot. Developers and architects use plot plans for each lot to decide which house models or building types can fit and where to situate them, especially in tract developments. It’s a tool for micro-level site planning on a per-lot basis, ensuring that each lot’s grading and layout work with the proposed building footprint.

• Contractor Guidance for Small Projects: If a homeowner is building a new fence, detached garage, or other small structure, a plot plan is a handy reference to know the exact property lines and plan the project accordingly. Contractors might refer to a plot plan to avoid inadvertently building over the line or in an easement. For example, a fencing contractor will use a plot plan to see where the property boundary is and if there are any utility easements (so they don’t dig post holes into a utility line).

• Property Management and Improvements: Property owners use plot plans as a base for planning landscaping, drainage improvements, or additions. Knowing the precise layout of one’s land and the space available can guide decisions like where to plant trees (avoiding easements), where to pave a new patio, or how big of an extension is possible. Essentially, the plot plan is the “footprint map” of your property, useful anytime you need to understand your lot’s constraints and opportunities.

Stakeholders Involved: Land surveyors are often the professionals who prepare plot plans. Their surveys provide the accurate measurements required. Homeowners or developers then use those plans for permit submissions. Architects and builders consult plot plans when designing an addition or new structure to ensure it will fit legally on the lot. Zoning officials and plan reviewers use plot plans to check compliance with local ordinances (for setbacks, lot coverage, etc.). Lenders and title companies may review plot plans or surveys during property transactions to verify that there are no legal issues (like an encroachment or an undocumented structure). In summary, surveyors create the plot plan, and a combination of private stakeholders and public officials use it to make informed decisions about the property.

Regulatory Considerations: Plot plans are directly tied to zoning and land use regulations at the individual lot level. U.S. zoning codes typically establish requirements that a plot plan must demonstrate, such as: minimum lot size, building setbacks on all sides, maximum building coverage or impervious surface coverage, and placement of accessory structures. If a property owner seeks a variance (an exception to a zoning rule, such as building closer to a lot line than normally allowed), the plot plan is the evidence showing the current layout and the extent of the requested variance. It’s often a required exhibit for a variance hearing. Additionally, local building codes or subdivision regulations might require certain information on plot plans – for instance, location of a well and septic system on rural lots, or flood zone information if applicable. A plot plan can also be important for erosion control or stormwater requirements on a site-specific basis (some jurisdictions ask for a grading/drainage plan which may be overlaid on the plot plan for new homes).

Plot plans can be considered a subset of site plans – in fact, some sources note that “a site plan, also known as a plot plan, is a diagram that shows proposed improvements to a property”. However, in practice there is a subtle distinction: plot plans usually focus on one lot and its metes-and-bounds details, whereas site plans can cover multiple lots or a broader development. Think of the plot plan as more survey-oriented, often drawn by a surveyor to satisfy legal description accuracy, and the site plan as more design-oriented, often drawn by an architect or engineer to illustrate site design. Despite these nuances, many permitting authorities use the terms interchangeably. For example, a residential building permit checklist might say “submit a plot plan (site plan) showing the building and lot dimensions.” As a best practice, it’s wise to clarify local definitions – but in this article, plot plan refers to the single-lot plan focusing on boundaries and setbacks.

Example: Suppose an architect is helping a homeowner add a new deck and an extension to their living room. They will first obtain a plot plan of the property (or hire a surveyor to produce one) to see the exact lot lines. The plot plan shows the house is currently 10 feet from the right side property line. The local zoning requires a 8-foot side setback, so the addition cannot reduce that distance below 8 feet. The architect uses the plot plan to position the new extension so that it will be, say, 10.5 feet from the side line, thus maintaining compliance. They draw the outline of the proposed addition on the plot plan and mark the dimension to the property line. The completed plot plan, showing the new footprint (house + addition) and all distances, is then submitted to the city with the building permit application. The permit reviewer checks this document and sees that even after the addition, the side yard setback is 10.5 feet, which is above the 8-foot minimum – it meets the zoning rule. The plot plan also indicates that the lot coverage will increase (perhaps from 25% to 28% of the lot area), which is still under the maximum allowed coverage of 30%. With everything in order, the plot plan is approved as part of the permit, and the homeowner can proceed to build the addition. In this process, the plot plan was the key to demonstrating zoning compliance at the lot level.

What Is a Floor Plan?

An example floor plan for a home’s interior, showing room layouts, walls, doors, and fixtures (e.g. kitchen appliances). A floor plan is a scaled diagram of the interior layout of a building level, viewed from above as if slicing horizontally through the structure about four feet from the floo. Unlike site or plot plans which focus on the external or site features, a floor plan looks inside the building, illustrating how space is divided into rooms and how those rooms connect. It typically shows walls, doors, windows, staircases, and the arrangement of rooms on one floor of a building. Each floor of a multi-story building will have its own floor plan drawing. Floor plans are fundamental to architectural design and are what most people picture when they think of blueprints for a house or building interior.

Components of a Floor Plan: Floor plans are rich in detail about the interior space. Common elements you’ll find on a floor plan include:

• Walls and Partitions: The outline of the building’s walls is the primary element of a floor plan. Typically, exterior walls are drawn thicker than interior walls to indicate structure, and interior partition walls are shown as thinner lines. Openings in walls (for doors and windows) are clearly marked with breaks or symbols. The floor plan essentially maps out all rooms and circulation areas by means of these wall layouts.

• Doors and Windows: Every door is shown as a gap in a wall with an arc or swing symbol indicating which way the door opens. Windows are shown as breaks in walls, often with a thin line or depiction of the window frame. The placement of doors and windows is critical for accessibility, ventilation, and natural light in the design They are also key elements for building code compliance (for example, certain rooms must have an egress window of specific size for emergency escape).

• Room Labels and Uses: Each significant space is labeled to indicate its intended use (e.g., Kitchen, Bedroom 1, Conference Room, Lobby). Floor plans often include textual labels or even abbreviations for spaces, providing a clear understanding of the function of each area. For residences, you’ll see labels like Living Room, Dining Room, etc., while for commercial, labels might be Office, Storage, Restroom, etc.

• Fixed Fixtures and Furniture: Many floor plans depict built-in or significant fixtures inside rooms. For example, a house floor plan will usually show kitchen cabinets, countertops, sinks, refrigerator and stove locations (often as scaled rectangles or symbols), bathroom layouts with toilets, sinks, tubs/showers drawn, and any other built-ins (fireplaces, closets, etc.) In an office floor plan, you might see the arrangement of desks or cubicles, or at least plumbing fixtures and millwork. While not every piece of furniture is drawn (especially in construction documents), key pieces might be shown to convey the scale and layout possibilities. Some plans (like interior design plans or marketing floor plans) include furniture icons (tables, couches, beds) to illustrate how the space can be used.

• Stairs and Vertical Circulation: If the building has multiple levels, the floor plan will show stairs (usually with an indication of direction: an arrow or text like "up" or "down" to show which way the stairs lead). Elevator shafts may be shown as a rectangle with an X or other label. These elements ensure one can understand how you move from this floor to another.

• Dimensions and Scale Notations: Floor plans usually have dimension lines indicating lengths of walls and sizes of rooms. For example, a dimension line might run along a wall with tick marks showing that a bedroom is 12'-0" by 10'-0". Critical dimensions such as wall lengths, room widths, door clearances, and hallway widths are provided so that during construction, the builder knows how to lay out the walls according to design. The scale of the drawing (commonly 1/4 inch = 1 foot for residential, or 1/8" = 1' for larger buildings) is noted, allowing measurements to be taken off the plan if needed.

• Symbols and Notations: Architectural floor plans include various symbols – for instance, a north arrow if needed (though often omitted in floor plans since orientation is usually shown on the site plan), section cut symbols (showing where a cross-section is taken), door and window tags (numbers or letters referring to a schedule for details), and sometimes electrical or lighting symbols if it’s a combined plan. However, typically electrical and mechanical details are shown on separate plans; the main floor plan focuses on architectural layout. Additionally, notes may indicate finishes or special construction requirements (e.g., a note might indicate "opening to above" for a double-height space, or "vaulted ceiling" in a room). Floor plans can also be annotated with code-related info, like occupancy load of a room or fire rating of a wall, as required for commercial projects.

Purpose and Usage: Floor plans are among the most important drawings in both design and construction. They serve a wide array of purposes:

• Architectural Design and Space Planning: During the design phase, architects and designers use floor plans to develop and refine how interior spaces will function. The floor plan shows the flow from room to room, the adjacencies of different functions, and how people will circulate. A well-designed floor plan is critical for a functional building – it ensures, for example, that kitchens connect logically to dining areas, that there is adequate hallway space, and that rooms are appropriately sized for their use. Interior designers also rely on floor plans to plan furniture layouts and ensure spaces will accommodate the needed furnishings. By iterating on floor plan layouts, architects solve problems of efficiency, aesthetics, and code compliance within the building.

• Construction Documents and Building Permits: Floor plans are core to the construction drawings submitted for building permits. They provide the building officials with a detailed view of the proposed construction so they can check it against building codes. For instance, the plan reviewer will look at the floor plan to verify that each bedroom has a proper egress window, that there are sufficient exits for the occupancy load in a commercial space, or that doorways meet accessibility standards. In fact, the International Building Code (IBC) and residential codes have many requirements that are evaluated on the floor plan – from minimum room sizes to exit route distances. (For example, the IBC mandates that every dwelling unit have at least one habitable room of at least 120 sq ft, and other rooms at least 70 sq ft, which would be checked via floor plan dimensions.) When the permit is approved, contractors use the permitted floor plan to actually build the walls and install fixtures as drawn. Every trade (carpentry, plumbing, electrical, etc.) refers to the floor plans: electricians might mark the plan to indicate outlet locations, plumbers see where fixtures go, etc., in conjunction with their own trade drawings. In summary, without a floor plan a building permit will not be issued – it’s a non-negotiable piece of the plan set.

• Marketing and Leasing: In real estate, floor plans are valuable sales tools. Residential listings often include floor plan diagrams so potential buyers can understand the layout of a home (which photos alone might not convey). Commercial leasing brochures also include floor plans to show prospective tenants how office or retail spaces are configured. These marketing floor plans may be slightly simplified or stylized (for instance, using color-coding or furniture illustrations) to be easily understood by a general audience. For an investor evaluating an apartment building, floor plans will reveal the mix of unit types and their efficiency (e.g., does the layout waste space in corridors or is it well-designed?). In the development stage, presenting floor plans to stakeholders (investors, lenders, or community members) helps communicate the project’s function and quality – people can envision how the space will be used.

• Tenant Improvements and Renovations: When altering an existing building, professionals will create a floor plan of the current layout (an “as-built” plan) and then draw proposed changes on a new floor plan. For example, in an office renovation, a space planner draws the new partition layout on a floor plan to show how new offices and conference rooms will be arranged. This is used to get approval from the tenant or owner, and later for permits if walls are being moved. In facilities management, keeping updated floor plans of a building helps with maintenance tasks and future changes (knowing where walls, doors, and mechanical rooms are, etc.).

• Ensuring Code and Accessibility Compliance: Floor plans are crucial for embedding code requirements into the design. Architects will annotate floor plans with things like occupant loads for assembly rooms, travel distance arrows to exits, fire-rated wall demarcations, etc., as required for commercial buildings. Accessibility standards (ADA) also heavily influence floor plans – for instance, a floor plan must allow wheelchair turning space in rooms like bathrooms and kitchens, and doorways need to be a certain width. These considerations are worked out on the plan. By reviewing floor plans, building inspectors or plan examiners ensure the design meets building safety codes before construction.

Stakeholders Involved: Virtually every stakeholder in building design and construction engages with floor plans. Architects and architectural drafters produce the floor plan drawings. Structural engineers overlay their information (like beam locations or structural walls) in coordination with the floor plan. Mechanical, electrical, and plumbing (MEP) engineers use architectural floor plans as the background to add their systems (like ductwork layouts or piping routes). The general contractor and subcontractors refer to floor plans constantly during construction for dimensions and to understand the spatial layout of their work. Interior designers and furniture vendors use floor plans to plan interior layouts and ensure everything fits. On the regulatory side, building officials and plan reviewers scrutinize floor plans to check code compliance (exits, fire safety, occupancy, etc.), while fire marshals might use them to plan emergency egress routes or sprinkler coverage. For existing buildings, facilities managers rely on floor plan diagrams for space management (like planning where to put new cubicles or equipment). And when the building is complete, the end users or occupants experience the space essentially as it was conceived on the floor plan – the placement of walls, doors, and rooms defines how they navigate and use the building.

Regulatory Considerations: Floor plans are intimately connected to building codes and standards. The International Building Code (and International Residential Code for homes), as adopted by U.S. states and cities, dictates many aspects of what must be shown or validated on floor plans. Some regulatory considerations evident on floor plans include:

• Room Size and Egress: Codes specify minimum room areas (as noted, e.g. 120 sq ft living room), minimum ceiling heights, and requirements for emergency exits. Bedrooms must have egress windows of sufficient size; basements and attics used as living space must as well. These are checked via the floor plan and window/door schedules. The arrangement of hallways and doors is reviewed to ensure there is a continuous and unobstructed path of egress from all parts of the floor to the exits (stairwells or exterior doors). Floor plans of large buildings often have fire exit capacity and travel distances analyzed directly on the plan.

• Fire Safety and Occupancy: Certain walls might need to be fire-rated separations (for example, between different tenants or around exit corridors); the floor plan will indicate these with a special line type or note. For commercial projects, floor plans are used to calculate occupant loads (how many people can be in each space based on its area and function), which in turn determines requirements for number of exits and exit door widths. These calculations might be shown in a code analysis on the plans. Additionally, accessibility features mandated by the ADA – such as clear floor spaces in restrooms or around doors, maximum travel distance without an elevator, etc. – are verified on floor plans.

• Structural and Mechanical Coordination: While structural plans (framing plans) are separate, the floor plan must accommodate structural elements like columns or load-bearing walls. If a column lands in the middle of a room, it will be drawn on the floor plan. Building codes require certain structural elements (like shear walls or fire-resistance in structural members) that can influence the floor plan layout. Similarly, mechanical code requirements for spacing of fixtures (plumbing code specifying distances between toilet and sink, for example) or electrical code (outlet spacing along walls) impact the detailed layout shown on floor plans. Often, these details are handled in specialized plans, but the architectural floor plan is the base that all these disciplines coordinate on.

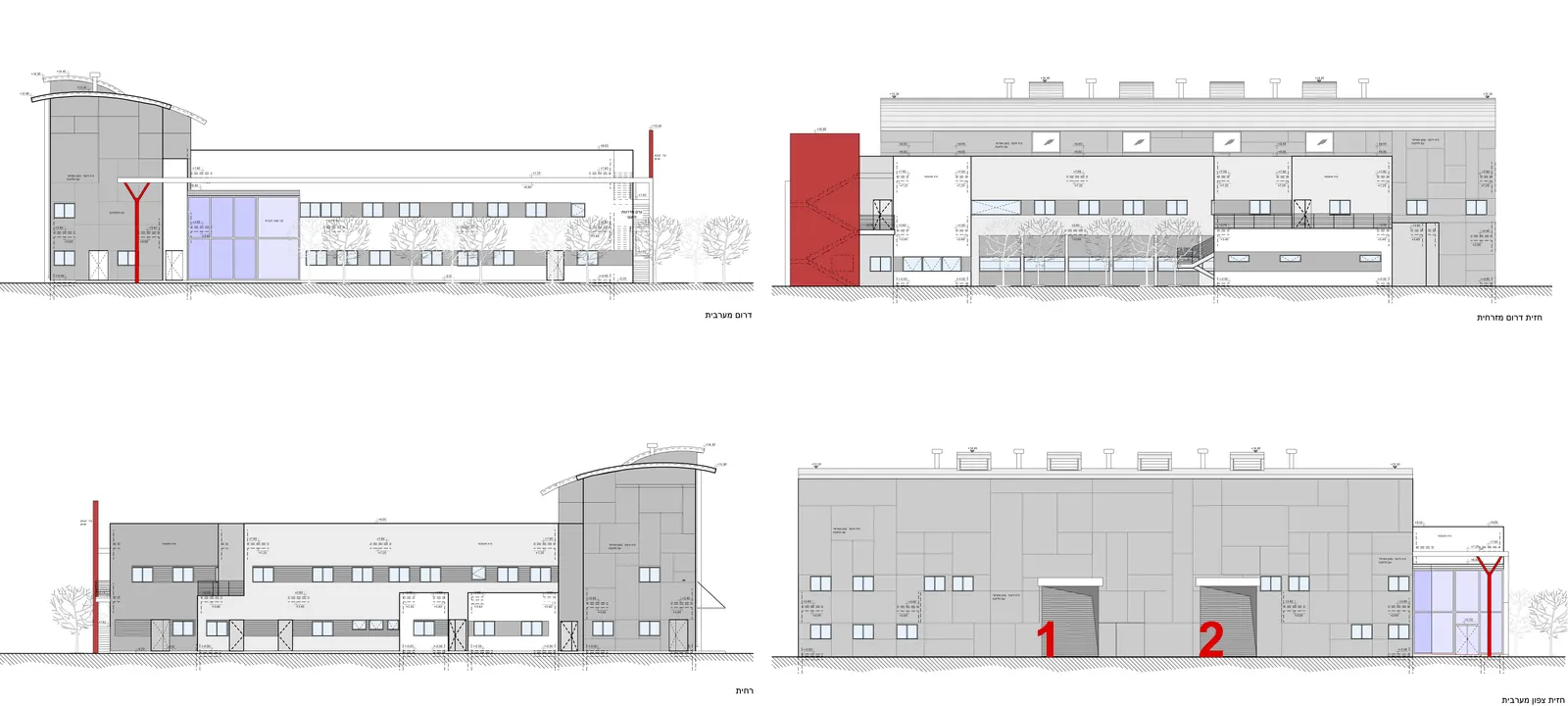

• Plan Set Integration: A floor plan doesn’t stand alone – it’s part of a full set of construction documents that include site plans, elevations, sections, and details. In fact, a complete permit or construction set in the U.S. will include both site plans and floor plans, among other drawings. The site plan ensures zoning and site work compliance; the floor plans (along with elevations/sections) ensure building code and architectural compliance. Many building departments publish checklists of required drawings. For example, Florida’s building code guidelines state that at minimum, a permit application must include a site plan, floor plan, foundation plan, framing plan, and exterior elevations. This underscores that the floor plan is a required component for regulatory review, just as critical as the site/plot plan.

In summary, floor plans translate the architectural concept into a technical diagram that builders can follow and regulators can approve. They focus on the inside of the building, detailing how space is utilized and ensuring that habitation will be safe, accessible, and comfortable according to codes and design intent.

Key Differences Between Site Plans, Plot Plans, and Floor Plans

Now that each plan type is defined, it’s important to compare them side-by-side. While site plans, plot plans, and floor plans are all essential, they differ in scope, level of detail, regulatory focus, and the stakeholders who typically use them:

• Scope (What They Cover): The site plan has the broadest scope – it encompasses the entire property (and sometimes multiple properties in a development), focusing on external elements and how a building sits in its environment. The plot plan is narrower, usually focusing on a single parcel and ensuring that one specific building or project fits on that lot with respect to boundaries. It’s essentially a site plan at the single-lot scale (in fact, a site plan for just one structure on one plot is a plot plan. The floor plan has the smallest scope in terms of geography – it looks inside the building, covering the layout of rooms on one floor of that building. In other words, site/plot plans are outward-looking (showing the building in relation to the world outside), whereas floor plans are inward-looking (showing the arrangement within the building). The site plan might show an entire campus or city block; the plot plan shows one lot; the floor plan shows one level of the structure on that lot.

• Level of Detail: Site plans present a comprehensive but high-level view. They include detailed site information (like parking counts, landscape layouts, utility runs, etc.), but they do not show internal room layouts of buildings. Plot plans are precise on measurements (for boundaries and setbacks) but typically simpler in content – focusing on key features needed for zoning compliance and survey accuracy. They won’t show interior walls or architectural styling; a plot plan might not, for instance, distinguish between a one-story vs. two-story house except via a note of square footage. Floor plans are detailed on interior architecture: they show every wall, door, and fixture in the building, including dimensions of rooms and construction notes. However, floor plans omit external site info (you might only see the outline of the building and maybe a porch or patio if attached, but nothing about property lines or adjacent streets). Essentially, site/plot plans detail outside elements (and basic building footprint), while floor plans detail inside elements (room layout, walls, and interior features). A site plan might show a building as just a shaded rectangle in a landscape, whereas a floor plan shows the internal partitions of that rectangle.

• Primary Purpose: Each plan type serves a different primary purpose. Site plans are intended for overall site development planning and approval. They communicate how the project fits into the land – crucial for getting planning/zoning approvals and coordinating large-scale design (think of the site plan as the “master plan” for the property). Plot plans serve legal and permitting purposes – they emphasize compliance with property-specific regulations and are often used for land transactions or permits to ensure there are no boundary issues or setback violations. They’re about legal correctness and zoning checks for a particular lot. Floor plans are for building design and construction – they ensure the interior layout is functional and code-compliant, and they guide builders and interior trades in constructing the space. Floor plans are less about legal positioning and more about usability and safety of the interior. In short, site plans answer “Where on the site…?”, plot plans answer “How does it sit on this lot legally?”, and floor plans answer “How is this building organized inside?”.

• Regulatory Focus: Zoning codes and land-use regulations are most concerned with site plans and plot plans. These plans demonstrate adherence to zoning rules – site plans especially for larger developments or commercial sites (covering parking, landscaping, site circulation per zoning requirements), and plot plans for residential or small projects (covering setbacks, lot coverage, etc.). The review of site/plot plans is typically done by planning or zoning officials. Building codes (and other construction regulations) are primarily concerned with floor plans (and related building drawings) – e.g., does the floor plan provide adequate exits, are doorways wide enough, are staircases designed correctly, are rooms big enough and properly ventilated). That review is done by building officials/inspectors. This difference means that often the site/plot plan may be approved in a zoning review before the floor plans are reviewed for a building permit. For example, a developer might get a site plan approved by a Planning Commission (ensuring the project’s size and placement are okay), then later submit floor plans and building details to the Building Department for the construction permit. Both are required, but they go through different approval channels focusing on different codes (planning/zoning vs. building code). There is overlap, of course – a site plan still must consider some building code aspects (like fire access), and floor plans might need an overall site context for things like accessibility routes – but generally zoning is external, building code is internal.

• Stakeholders and Users: Architects and designers produce all these plans, but different stakeholders prioritize each. Developers and urban planners are deeply interested in the site plan because it affects feasibility, density, and site utilization (and often public agencies or community members review site plans in the entitlement process). Surveyors and civil engineers often contribute to plot plans and site plans, providing the technical details for boundaries, grading, and utilities. Home builders and homeowners might only engage with a plot plan when needed for a permit or to resolve a boundary question, whereas they’ll obsess over the floor plan because it affects livability of the house. Investors might examine site plans to check if the development maximizes the land (e.g., enough parking, room for future expansion) and floor plans to ensure marketability of the spaces (e.g., efficient unit layouts in an apartment) – but they likely pay less attention to minutiae of plot plan surveys unless there’s a land issue. Contractors use floor plans day-to-day during construction, while site plans guide the initial site work and exterior features. Regulators: Planning departments care about site/plot plans; Building departments care about floor plans (and the rest of the building plans). In sum, site plans and plot plans are often shared with external stakeholders (community, planners, neighbors, surveyors), whereas floor plans are critical to internal stakeholders on the project (design and construction teams, end-users).

To illustrate the differences: imagine you have all three plans for a new home project. Looking at the site plan, you can tell where the house sits on the lot, how the driveway connects to the street, and where the landscaping and patios will be; you see the context (neighboring lots, street names, etc.). Looking at the plot plan, you see a more technical view of the lot with exact distances – perhaps it looks sparser, with just the house outline, lot lines, and arrows showing 10′ to the north fence, 30′ to the front curb, etc. It’s useful if you want to verify that nothing crosses the property line or to stake out the exact corners on site. Looking at the floor plan, you step inside the house – you can see it has, say, an open kitchen next to the family room, bedrooms in one wing, and bathrooms locations, etc., with measurements for each room. If you put the three plans side by side, they complement each other: the site/plot plans provide the big picture and legal siting, while the floor plan provides the intimate detail of the building’s interior.

U.S. Zoning and Building Code Considerations

Because the question of site vs. plot vs. floor plans often arises in the context of regulatory compliance, it’s worth highlighting how U.S. codes treat these plans:

• Zoning Codes and Site/Plot Plans: Zoning ordinances in U.S. cities frequently require a site plan or plot plan submission as part of obtaining land use or building approvals. The site/plot plan demonstrates that a proposed project respects all zoning constraints on the property. For instance, a zoning code might stipulate that any new building in a certain district undergo a Site Plan Review. In that review, officials check a long list of site plan requirements defined by code. A typical ordinance will ask for things such as property lines and easements, location of all existing and proposed structures, parking layout meeting the required ratio, traffic access points, landscaping meeting city standards, lighting plans, drainage plans, and often even neighboring property information to gauge impacts. These requirements ensure comprehensive oversight of how a development fits into the community. Plot plans are similarly used for smaller-scale reviews – for example, a homeowner building a shed must often submit a simple plot plan to get a zoning sign-off that the shed won’t encroach on setbacks or easements. In summary, zoning codes ensure that site and plot plans conform to community planning objectives, controlling building placement, density, and site functionality. If a project cannot meet certain zoning requirements as shown on the site/plot plan, the developer must seek a variance or adjust the design. Many jurisdictions publish checklists for site plan requirements; for example, Florida’s statutes empower local governments to require certified site plans for development projects to confirm they meet “local zoning and building codes” before permits are issued.

• Building Codes and Floor Plans: Building codes (like the IBC and IRC adopted by states or cities) primarily come into play with the floor plans and other building drawings. These codes set the standards for life safety, structural integrity, fire protection, and health within the building. When an architect designs floor plans, they must incorporate code requirements for things like room sizes, door widths, corridor lengths, number of exits, and so on. For example, the IRC requires that every dwelling unit have at least one habitable room of at least 120 sq. ft.and other rooms at least 70 sq. ft. – this influences how the floor plan is drawn (no tiny bedrooms or living rooms below those sizes). The IBC will require, say, that in an office floor plan, no point in a room is more than 75 feet from an exit (for an unsprinklered building) – this might affect the layout or require additional exits. During permit review, building officials will compare the floor plans against code checklists: means of egress (are there enough exit doors and are they placed remoteness apart?), accessibility (is there an ADA-compliant restroom, are door clearances drawn correctly?), fire safety (are fire-rated corridor walls indicated?), structural (are shear walls or bearing walls appropriately noted?). Because of these needs, building code compliance often results in detailed annotations on floor plans, or additional plan sheets dedicated to code analysis. For instance, a “Life Safety Plan” may be a version of the floor plan highlighting exits, travel distances, occupant loads, etc., for the building official’s review. In essence, while site plans speak to zoning law compliance, floor plans speak to building code compliance – both sets of laws must be satisfied for a project to proceed.

• Integration in Permit Submissions: A development project in the U.S. typically goes through both a planning/zoning review and a building code review. The site/plot plan is usually the critical document for the planning phase, showing that the proposed land use, density, and site design meet zoning rules (or outlining deviations for which approvals are sought). Once that is cleared (sometimes via a special use permit, site plan approval, or simply as part of permit intake), the focus shifts to the building plans. For the building permit, a full set of construction drawings is required – including floor plans, elevations, sections, structural plans, mechanical/electrical plans, etc., and also a site plan that reflects the final approved site configuration. Many building departments explicitly list that both a site plan and floor plans must be included in the permit submission. For example, one county’s building plan review guidelines state that “Construction documents submitted for building permits shall include: A Floor Plan, Site Plan, Foundation Plan, ... and all exterior elevations”. This underscores that both plan types are required and reviewed: the site plan primarily by zoning and engineering reviewers, and the floor plans by building code reviewers.

• Other Codes and Standards: Aside from zoning and building codes, there are other regulations that can influence plan requirements. Fire codes might require a separate site plan showing fire department access, hydrant locations, and sprinkler/standpipe connections for larger buildings. Environmental regulations (like stormwater management or wetlands protection) can affect site plan content (e.g., showing drainage basins, protected zones). Historic district guidelines might require site plans showing context of adjacent historic structures. On floor plans, occupational safety regulations or health department codes (for restaurants, hospitals, etc.) may impose specific layout needs (like a certain flow in a commercial kitchen, or minimum sizes for patient rooms). And of course, the Americans with Disabilities Act (ADA) (a federal civil rights law) requires accessible design in public and multifamily buildings – which means that both site plans (for accessible parking and routes) and floor plans (for interior accessibility like hallway widths, restroom layouts) must incorporate those standards. These various codes interweave with the use of site, plot, and floor plans, making them not just design documents but also legal documents that demonstrate compliance.

In summary, a site/plot plan is usually the tool to satisfy zoning and land development codes, ensuring the project is acceptable for its location, whereas floor plans (and building drawings) satisfy building codes, ensuring the project is safe and sound to construct and occupy. Both are indispensable in U.S. practice – neglecting either will halt a project’s approval. For anyone developing property, it’s crucial to understand that a beautiful design must also check the boxes of these regulations, and that starts with preparing high-quality site plans and floor plans that address all relevant code requirements.

How Each Plan Fits Into the Real Estate Development Process

In a real estate development or building project lifecycle (from initial idea through construction to operation), site plans, plot plans, and floor plans come into play at different stages:

• Concept and Feasibility Stage: Early in a project, a developer or architect will create conceptual site plans and test-fit floor plans to evaluate the feasibility of a project. For example, before even acquiring a piece of land, a developer might sketch a rudimentary site plan to see how many units or what size building could fit on the site under zoning rules. This might involve checking the site dimensions against setback requirements and seeing, for instance, if a parking lot of the needed size can be arranged. At the same time, conceptual floor plans or layoutsare developed to ensure the building’s program (number of apartments, office layout, etc.) can be achieved within the footprint. An investor might ask for a test floor plan to verify that the mix of one-bedroom vs two-bedroom apartments is reasonable, or that an office building concept can yield the desired square footage. During due diligence, plot plans (surveys) are reviewed to identify any site constraints like easements or irregular lot shapes that could affect buildable area. Essentially, in this stage, plot/site plans address “Can we build what we want here?” and floor plans address “Will the spaces meet market and functional needs?”. Often, multiple iterations occur – adjusting the site plan to add another building wing, or changing floor plan layouts to better fit the site’s shape. By the end of the feasibility stage, the project will have a rough site plan showing overall massing and maybe basic landscaping, and preliminary floor plans showing how the building might be organized internally. These are used for initial cost estimates and go/no-go decisions.

• Design and Entitlement Stage: Once the project is deemed feasible and moves forward, detailed design kicks off. During schematic design and design development, the architect creates more refined floor plans – room sizes are set, door locations, plumbing fixtures, etc., are decided. At the same time, civil engineers and architects refine the site plan – locating utility connections, finalizing parking lot geometry, incorporating grading, etc. This is often when the formal entitlement process (approvals from local authorities) happens. A site plan set might be submitted to the planning commission or zoning board for approval (sometimes called a Site Plan Approval, Conditional Use Permit, or Planned Unit Development submission, depending on the scenario). That submission typically includes the site plan, landscape plan, maybe building elevations, and sometimes conceptual floor plans (for instance, a city might ask to see floor plans of a proposed apartment building to ensure units meet minimum size or to check that certain uses are separated). Meanwhile, if the land needs to be subdivided or if easements must be created, a plat (plot) plan or survey is prepared and reviewed by the municipality. Surveyors might be updating the plot plan to mark new lot lines or dedications (like part of the land given for a new sidewalk). During this stage, public hearings or community meetings may display site plans (to show how the project fits the site and impacts neighbors) and sometimes floor layouts (e.g., to show a community that an event space occupancy is X, or that an apartment building has XYZ amenities). By the end of this stage, the project should obtain zoning entitlement – often evidenced by an approved site plan on record with the city – and have a well-developed set of floor plans ready for final construction documentation. Notably, some jurisdictions require a “site plan approval” documentbefore one can even submit for a building permit. In parallel, design development documents will include both site plan and floor plans as part of the standard drawing set, which helps in coordinating all aspects of the design before final construction drawings are produced.

• Building Permit and Construction Documents Stage: This is where everything becomes official technical documentation. The architect and engineering team produce a complete set of construction drawings. Floor plans at this point are highly detailed (showing all dimensions, wall types, door and window tags, finish schedules, etc.), ready for builders. Site plans are likewise finalized, including any construction-related info like proposed grades, site utility plans, and erosion control measures. A plot plan or site survey might be included or referenced to confirm property lines for the permit. These documents are submitted to the building department for permit review. As mentioned earlier, both site and floor plans are part of the required package. The building department and other reviewing agencies check everything. For example, zoning officers ensure the site/plot plan still matches what was approved (no surprise changes), and building plan examiners verify the floor plans meet code. If revisions are needed, the plans are corrected and resubmitted. Once approved, the permit is issued and construction can begin. During construction, the approved site plan is used for site layout – surveyors might come out and physically stake the building corners as per the site plan’s measurements (this prevents the building from accidentally being built in the wrong spot, which can be extremely problematic). The approved plot plan might be posted on site or kept for reference to ensure, for instance, the grading contractor builds the driveway where intended and property line setbacks are respected when digging foundations. The floor plans are of course used continuously by the construction team – framing carpenters lay out walls according to the dimensions on the floor plan, plumbers route pipes to the bathrooms and kitchens as shown on the plan, electricians install outlets and switches in each room as per the plan, etc. If any changes are made on the fly (change orders), revised floor plans might be issued. Inspectors visiting the site will often carry a copy of the approved floor plan and site plan to check that the work in place matches what was permitted – for example, an inspector verifying a setback will measure on the ground and compare to the plot plan, or check that a firewall is located as on the floor plan.

• Completion, Marketing, and Operation Stage: Once construction is nearing completion, the project is marketed (if it’s for sale or lease). At this point, floor plans become marketing material – for instance, a brochure for a new office building will show typical floor plans so tenants know the layout and square footage of spaces. Residential developments provide floor plan diagrams to attract buyers (like model home floor plans). Site plans are also used in marketing; a commercial property listing might include a site plan that highlights traffic access, parking availability, and any on-site amenities (like a site plan showing a retail pad in front of a shopping center). For investors or asset managers, the site plan and floor plans are part of the due diligence package if the property is refinanced or sold – they help assess the property’s layout and potential for modifications. In property management, the site plan is used for facilities and maintenance planning (e.g., scheduling parking lot repaving, landscaping work, or knowing the locations of utility shutoffs, which are often shown on site plans), and floor plans are used for space management (e.g., planning tenant space reconfigurations, tracking rentable areas by measuring the floor plan). If an owner decides to expand or remodel the building in the future, the cycle begins again with referring to the original plans and then drafting new site plans or floor plans for the addition.

Throughout the development process, one can see that site plans and floor plans are revisited and revised continuously as the design evolves, while the plot plan (survey) tends to remain constant unless land boundaries change. The plot plan is most crucial at points where legal site constraints are an issue (land purchase, variance requests, permit check). The site plan is a constant reference for any site-wide decision (from placing a construction trailer to paving the parking lot). The floor plan is a day-to-day tool for the design and construction teams and later for occupants. Together, they ensure that at every scale – from the macro arrangement on the land to the micro arrangement of furniture in a room – the project is well planned and executed.

Best Practices for Developers and Architects

Working effectively with site plans, plot plans, and floor plans requires attention to detail and adherence to standards. Below are best practices for each type of plan to ensure accuracy, compliance, and clarity:

Best Practices for Site Plans

• Start with a Reliable Survey: Always base the site plan on a current, accurate land survey of the property. This means obtaining a certified boundary and topographic survey so that property lines, existing structures, and elevation contours are correct. Using an up-to-date survey as the underpinning ensures that your site plan doesn’t mistakenly show a fence or building in the wrong place – a critical factor for avoiding boundary disputes or compliance issues. A legal description and lot dimensions should be clearly indicated. If the project is large or complex, consider hiring a professional surveyor early; some jurisdictions even require a surveyor’s input or stamp on site plans.

• Follow Local Requirements and Checklists: Different cities/counties have specific requirements for what must appear on a site plan (as found in zoning ordinances or permit application checklists). Before drafting, obtain the local checklist and ensure all required elements are included – such as north arrow, graphic scale, title block with project and owner name, property lines with metes and bounds, setback lines, easements, utilities, adjacent street names, etc. For example, if the city code demands showing all existing and proposed utility connections and on-site fire hydrants, make sure those are on the plan. Missing required information can delay approvals. It’s helpful to annotate the site plan with key data (lot area, building footprint area, impervious surface area, parking count, open space percentage, etc.) to facilitate the reviewer’s job.

• Accuracy of Scale and Measurements: Use an appropriate scale that allows the whole site to fit on the sheet andlets details be legible. Common site plan scales are 1" = 20' or 1" = 30' for smaller sites, and perhaps 1" = 50' for larger sites (or metric equivalents). Ensure the drawn scale is precise – one best practice is to include a bar scale on the plan so that if the drawing is enlarged or reduced, the scale can still be measured. Double-check critical dimensions like setback distances and drive aisle widths with actual measurements on the drawing to avoid errors. Regulatory reviewers will often scale off your plan to verify distances, so they must be accurate. Label key dimensions clearly (e.g. “25’ front setback” with an arrow, or “50’ building separation” as needed). Being meticulous here prevents costly corrections later if something was a few feet off.

• Clearly Differentiate Existing vs. Proposed: When presenting a site plan for a project that modifies an existing site, use graphical conventions to distinguish what is already there from what you propose to add or change. For instance, draw existing features with dashed or lighter lines, and proposed construction with solid bold lines. Existing trees might be grey outlines, and new trees solid green (if in color). Some site plans use color coding or patterns (like hatched areas for new pavement). Also, provide a legend if necessary. This clarity helps reviewers and stakeholders understand the scope of work at a glance. It’s especially important in phased projects – you might even have multiple site plan iterations (phase 1 vs phase 2) and you want to avoid confusion.

• Integrate Grading and Drainage Thoughtfully: A site plan isn’t just about placing objects; it’s also about how the site will function environmentally. Plan for drainage – ensure the site plan accounts for stormwater flow. High points, low points, drainage swales, and detention basins (if any) should be indicated. Many jurisdictions want to see an arrow indicating the drainage flow direction on paved areas or rooftops. Make sure new construction won’t cause water to pond against buildings or flow onto neighbors’ property (a common cause of permit rejection). If the site has significant elevation change, include contour lines and perhaps spot elevations for key points (corners of building, property corners, etc.). Work with a civil engineer to incorporate required stormwater management features and erosion control measures into the site plan. Grading and utility plans can be separate drawings, but the basic concept (like where water goes) should be apparent on the primary site plan as well.

• Consider Access and Traffic Flow: Pay attention to how vehicles and pedestrians will move on the site. Align driveway curb cuts with existing street access points if possible, and ensure sight lines aren’t obstructed (some codes require “clear sight triangles” at driveways – keep landscaping or signs out of those). Design internal circulation to be intuitive and safe: for example, mark a fire lane around the building if required, provide adequate turnaround space in parking lots (dead-end parking rows need hammerhead or T-turnarounds), and ensure pedestrian paths connect building entries to parking and public sidewalks. Showing crosswalks, handicapped parking with accessible routes, and bicycle parking (if needed) are all good practices. Basically, review the site plan from the perspective of a first-time visitor: Is it clear where to drive in, park, walk, and enter the building? Adjust the plan to eliminate confusion or conflicts (like a dumpster enclosure blocking part of a drive aisle – not ideal).

• Include Landscaping and Lighting Plans: Many times the “site plan” encompasses landscaping and sometimes exterior lighting placement. It might be required to show proposed trees, planting beds, lawns, fences, and lighting fixtures. Even if not explicitly required, adding these can be beneficial for design coherence. Place shade trees strategically (e.g., to meet parking lot shading requirements or provide screening to neighbors). Indicate compliance with any landscape ordinance by tabulating required vs. provided plantings. For lighting, show parking lot light pole locations or wall-mounted lights, with a note that they will be shielded to prevent glare off-site (since light pollution is a concern in many codes). By incorporating these elements, you demonstrate a well-rounded site design that goes beyond just plopping a building on a lot.

• Verify Regulatory Compliance on the Plan: Before submitting, do a self-check: does the site plan clearly demonstrate compliance with all zoning bulk regulations? It can help to include a small data table on the plan: list required and provided values for lot area, setbacks, building height, floor area, lot coverage, parking count, etc. This acts as a cheat sheet for the reviewer and shows you did your homework. If something is not in compliance and you are seeking a variance, explicitly label it (e.g., “Proposed side setback = 5’ (variance requested for 5’ reduction from 10’ required)”). Honesty and clarity about any deviations will save time in the review process. On the flip side, if everything complies, the data table reinforces that fact.

• Quality and Clarity in Presentation: Use clean, professional graphics. Avoid excessive clutter – if the site plan becomes too busy, consider creating separate plans (like a separate demolition plan for removing existing features, a separate utility plan, etc., if allowed). But the main site plan should stand on its own in conveying the overall project. Use consistent symbols and line weights (for example, all proposed building outlines might be a thick solid line, property line a distinctive dashed line, etc.). Label all major elements directly on the plan (like “New 2-Story Office Building (35’ tall)”, “Existing 6’ wood fence to remain”, “New Concrete Sidewalk”, etc.). This way, someone reading the plan doesn’t need architectural training to understand what’s what. Remember, site plans often get shared beyond just the design team – community members, planning commissioners, etc., will see it. Clarity can also engender trust. Lastly, ensure the site plan is oriented in a logical way (typically north up, unless there’s a compelling reason otherwise) – consistency with how the site is normally seen (e.g., in Google Maps) helps reviewers and the public mentally place it.

Best Practices for Plot Plans

• Use a Licensed Surveyor for Critical Measurements: A plot plan’s accuracy is paramount, since it often becomes a legal document. If the plot plan is for anything that hinges on property lines (such as a zoning variance, new construction near setbacks, or resolving a dispute), hire a licensed land surveyor to either prepare the plot plan or provide certified measurements. They can place stakes on the lot and mark exact reference points. Relying on old or approximate measurements is risky – a small error in a plot plan (say, showing a building 1 foot farther from the line than it actually will be) could lead to construction that violates code, requiring costly remedies. Many municipalities actually require a surveyor’s stamp on plot plans for new houses or major additions to ensure correctness. Even if not required, involving a surveyor for key points is a good practice when precision matters.

• Clearly Delineate Property Lines and Setbacks: The plot plan should make it immediately obvious where the lot boundaries are. Draw property lines with a distinctive linetype (often a heavy solid line or a pattern like long-short-short dash). Label the lengths of each property line (in feet or meters) and the bearings (compass directions) if known. Then draw the setback lines as required by zoning – these can be lighter dashed lines offset inside the property lines at the specified distances (e.g., a dashed line parallel to the front property line, 20 feet in, labeled “Front Setback Line”). This lets everyone see the “buildable area” of the lot at a glance. Place the structure’s outline within that, and use callouts or arrows to indicate the distance from structure to each property line. For example, you might have arrows from the building corner to the side lot line with text “10.2’ ” (and ensure that meets or exceeds the 10’ requirement). By providing all these distances on the plan, you allow a reviewer (or neighbor) to verify compliance without scaling the drawing. It’s helpful to also label the lot dimensions (e.g., “Lot Width = 60.00’ ”, “Lot Depth = 120.00’ ”), as well as any encroachments or projections(like eaves or bay windows that approach setbacks – sometimes these are allowed to encroach a bit, which should be noted if applicable).

• Include All Relevant Site Features: Even though plot plans are simpler than full site plans, don’t omit important features that exist on the property. Show any detached structures (garage, shed), driveways, major landscaping features (like a big oak tree or a retaining wall), and fences especially near property lines. Often, the presence of these can affect approvals – e.g., a utility easement might run along the back where a shed is proposed, or a large tree might be protected by local ordinance (and thus needs to be considered if near a new construction area). If the plot plan is for a building addition, show the part of the existing building as well so it’s clear how the new addition extends. Mark any features to be removed with an “X” or note (e.g., “old shed to be demolished”). If the lot has peculiar topography or flood zone, a few contour lines or floodplain boundary line should be drawn for context. The idea is to provide a complete picture of the lot’s conditions – so that officials can assess impacts and contractors using the plan won’t be surprised by something (like discovering a buried gas line that wasn’t on the plan – always show utility lines and meters that are on the property as far as known).

• Highlight Easements and Legal Restrictions: If there are any easements, setback requirements beyond the norm (like a special building line on the subdivision plat), or other legal encumbrances on the property, indicate them clearly on the plot plan. Draw easement boundaries (often dashed lines) and label their purpose and width, such as “15’ Utility Easement” or “Access Easement for Lot 2.” If building is prohibited in those areas, sometimes hatch them or note “No Build Zone.” This is crucial because even if a structure fits in the lot per zoning, an easement might still prevent construction in that zone. Many permit techs will cross-check your plot plan with recorded plat maps to ensure you’re not building on an easement – showing it proactively demonstrates thoroughness. Additionally, if the property is subject to any special conditions (like a conservation buffer), show that area. It’s far better to address these up front than to have an application kicked back for not respecting an easement.

• Use a Consistent and Simple Style: Plot plans are often black-and-white line drawings (with maybe some shading). They should be very legible and not over-detailed. Use simple line types and a legend if needed. For example, property line = solid bold, setback = dashed, easement = dotted, building = solid medium line, etc. North arrow and scale bar should be present. Orienting the plot plan with north up is helpful unless the lot is at a weird angle – main goal is to not confuse direction (if not north-up, perhaps provide both a north arrow and a note like “Front property line along Elm Street” for clarity). Because plot plans can sometimes end up on small paper sizes (even A4/letter for simple residential permits), keep text and symbols clear at small scale. Avoid putting too much information – it’s about what’s on the lot and its relationship to boundaries; don’t clutter with things like interior layout (not needed on a plot plan except maybe a door or window if relevant to an exterior feature). Focus on boundary and footprint information above all.

• Double-Check Against Title Documents: A best practice, especially for formal submissions, is to verify your plot plan against the property’s deed or plat. Ensure that the dimensions you show match the legal description. For example, if the deed says the lot is 100.00 feet wide, your plan should reflect that (accounting for scaling). If the plat has a “building line” shown, incorporate it. This cross-check can prevent discrepancies between what’s on file and what you submit. If you’re not a surveyor, clearly state “Not a Survey” on the plan if it’s drawn by the architect or homeowner, to avoid any misunderstanding – but still, do your best to make it accurate. If any lot line adjustments or consolidations have happened, confirm that your plan reflects the current configuration, not an outdated one.

• Make it Permit-Ready: If the plot plan is part of a permit set, include in the title block information like the project address, the owner’s name, and your name/contact as preparer. Some jurisdictions ask for the lot and block number, subdivision name, and parcel number on the plot plan. Put those in a title or notes section. Additionally, sign and date the plot plan. If an official survey is included, it will have the surveyor’s certification statement – that’s great to use. If not, just ensure that anyone reviewing can tie this document to the application (missing addresses or names can cause confusion in the file).

• Plan for Construction Use: Think ahead – the plot plan may be used by the builder on site to lay out the project. So it’s useful to mark reference dimensions that a contractor or inspector can use. For instance, dimension from a known property corner to a side of the new structure (so they can measure in the field). Or if an addition is happening, perhaps dimension from an existing house corner to the new addition’s corner (since the existing corner can be located on site). These references turn the plot plan into a practical tool for layout. Also, if any grading or site work is minor and thus shown on the plot plan, note any key instructions (like “Ensure final grade slopes away from foundation min. 6” in first 10 feet” or “All work to remain on owner’s property – protect neighbor’s fence during construction”). Such notes show diligence and help the contractor understand limitations.

Best Practices for Floor Plans

• Design with Code and Function in Mind: Before drafting the final floor plan, always factor in both the intended function of spaces and the relevant building code requirements. For example, ensure that hallways and doors that need to accommodate wheelchairs meet the minimum 36″ clear width (ADA standards). If designing bedrooms, remember each needs an egress window; if designing an office, consider occupancy loads to determine exits. It’s easier to incorporate these upfront than to revise later. A good practice is to keep a code checklist handy (for residential: room sizes, ceiling heights, stair dimensions, etc.; for commercial: exit access distances, restroom fixture counts, etc.) and cross-check as you lay out the plan. Marrying function and compliance early yields a floor plan that won’t require drastic changes under plan check. For instance, an early decision on where to place stairwells in a multi-story building will be guided by ensuring exit path distances from farthest points will be within code limits. Proactively laying out the floor plan to satisfy these constraints saves time.

• Be Consistent and Clear with Symbols: Use standard architectural symbols and conventions so that any professional reading the plan can understand it easily. Doors should have swing arcs; windows in plan are typically shown as breaks in walls; appliances like stoves can be a simple outlined shape. Include a legend if you have any uncommon symbols. Maintain consistency – e.g., all interior doors drawn at the same scale with a 90-degree arc, all sinks shown similarly. This also applies to line weights: generally, walls are drawn with thicker lines than secondary elements like fixtures or furniture. By emphasizing walls, you make the plan immediately readable in terms of spatial configuration. Also, label each room by name (and optionally area or number). If the project is large or has many similar rooms, numbering rooms or using room tags linked to a schedule can help avoid clutter. For residential or small projects, simply writing “Bedroom 2” or “Conference Room” inside the space is fine. Ensure text is not too small; it must be legible when printed on the intended sheet size.

• Dimension and Document Everything Necessary: A construction floor plan should enable the builder to lay out every wall and element correctly. This means providing dimension strings that locate walls, doors, windows, and other features. Typically, you’d have an overall string (overall length of a row of rooms), and intermediate strings locating each wall intersection, door opening, etc. For example, on a house plan, an exterior wall might have a string showing distances from one corner to each window and door along that wall. It’s a best practice to dimension to structural elements (face of stud or centerline of wall) consistently, and note what you’re dimensioning to (some plans label “Dims to face of stud” or similar). Also, dimension important clearances like kitchen aisle widths or bathroom fixture spacing to ensure design intent (and code clearance) is achieved. Don’t rely on someone scaling the drawing – if it matters, put a dimension. That said, avoid over-dimensioning (which can cause conflicts if slight drafting changes occur). A good rule is that every element’s position should be determinable by dimensions, but nothing should be dimensioned in two conflicting ways. One can include a few reference dimensions (like overall building width) for checking but the main layout should be dimensioned in a logically broken-down way. Additionally, incorporate detail references on the floor plan: mark where sections are cut (with section symbols) or keynotes for special areas (like “See enlarged floor plan of kitchen on Sheet A-5”). The floor plan is often the “index” from which one finds other detailed drawings.

• Consider Furniture and Circulation Early: Even if furniture placement is not finalized, think about how furnishing will work in each space while designing the floor plan. This ensures rooms are adequately sized and door swings, etc., don’t impede furniture. For instance, in a bedroom plan, imagine a queen bed and dresser – make sure there’s enough wall length to place them and still walk around. In an office, lay out potential desk arrangements to see if power/data outlets (which you might plan later) will be logical. Many architects will do a quick test-furnishing layout on their plans as they design, to validate the usability of the space. You can include built-in furniture or major pieces on the plan if it helps illustrate functionality (as seen in some plan sets which show a sample furniture layout in light lines). For residential marketing plans, definitely draw in furniture to give scale. For construction documents, you might omit loose furniture, but including it in design phases is helpful. Always preserve clear pathways in your plan – e.g., ensure there’s at least 3 feet clearance in front of a fridge or that a conference table isn’t crammed such that chairs back into a wall. This approach yields floor plans that “live well,” not just fit technically.

• Coordinate with All Disciplines: The floor plan is central, but it’s not the only plan – structure, mechanical, electrical, plumbing, etc., will overlay their work on the architecture. Coordinate early and often. For example, consult with the structural engineer about where columns or load-bearing walls will go and reflect those on the plan (with column grids or wall tags). Nothing is worse than delivering a floor plan to a client and later adding a structural column in the middle of their living room because it wasn’t accounted for initially. Likewise, think about mechanical equipment and ducts: is there space for a furnace room or electrical panels (and are they shown)? Plan for chases or soffits if big ducts need to run – you might draw in a mechanical chase on the floor plan as a reserved space. Ensure that plumbing fixtures line up floor-to-floor (for multistory buildings) to ease plumbing runs – stacking bathrooms is a known best practice. It’s helpful to do a coordination meeting or overlay where you literally overlay the floor plan with structural and mechanical preliminary layouts to catch conflicts (like a beam through a ceiling where you planned a dropped soffit, etc.). Also coordinate the floor plan with the site plan: the entry door locations on the floor plan should correspond to walkways on the site plan; if you show a swing on the floor plan for an exterior door, ensure the site plan’s grading will allow that door to open (for instance, don’t have a big grade drop right outside a door unless there’s a step or stoop detailed). By actively coordinating, you prevent errors and last-minute design changes.

• Review for Accessibility (ADA) Compliance: For any public, commercial, or multi-family residential floor plan, perform an accessibility audit on your design. Check door clearances (typically 18” pull side clearance at latch side of doors, etc.), corridor widths (minimum 44″ in commercial, often 36″ in residential), turning radii in restrooms (a 60″ circle or T-turn must fit in accessible bathrooms), and that an accessible route exists to all primary spaces (ramps or elevators as needed for multi-level). If parking is connected, ensure an accessible entrance aligns with the site plan’s accessible parking. On the floor plan, indicate the features like ADA-compliant restrooms with necessary grab bar clearances in the enlarged plans, etc. Even if the code official will check this, it’s a best practice for architects to mark on floor plans the key ADA dimensions (some do a separate Accessibility Plan, but small projects can incorporate it into the floor plan via notes). For residential single-family, ADA isn’t required by code, but considering “aging in place” or visitability can be a selling point – e.g., designing at least one no-step entry and a bedroom/bath on the ground floor. For public projects, also consider guidelines from the ADA and ANSI A117.1 in every detail (counter heights, reach ranges to controls, etc., which may be shown on elevations or sections but stem from the floor plan arrangement). Early attention to these will avoid embarrassing redesigns if something as fundamental as a wheelchair not fitting in a space is caught late.

• Simplify for Communication when Needed: While construction floor plans should be detailed, sometimes you need simplified floor plans for other audiences. For instance, community meetings or marketing brochures benefit from cleaner, more diagrammatic floor plans (without all the technical notations). Best practice is to create presentation versions of floor plans for such uses: maybe color-code public vs private areas, or use furniture and omit dimensions to present to a layperson. This isn’t part of construction docs, but it’s a good practice for architects and developers when communicating with non-technical stakeholders. It helps avoid overwhelming them with technical details while still conveying the design. Always ensure, however, that any simplified depiction remains consistent with the actual plan (so you’re not promising something you won’t build). Consistency and honesty in representation build trust with clients and the public.

• Thorough QA/QC Before Finalizing: Before sending off floor plans to be permitted or built, do a thorough quality check. Some tips: walk through the plan mentally – pretend you are entering the building, going to each room, and see if anything feels off (like “oh, there’s no closet in this bedroom” or “the refrigerator door swings into a doorway – conflict!”). Check alignment – do walls line up from floor to floor (use a overlay or BIM if available)? Check that all doors have proper swings and don’t conflict with each other or with fixtures (like two doors hitting, or a door hitting a toilet). Ensure every required element is accounted for: e.g., in a house, did you include a furnace/HVAC location and water heater, and are they accessible? In an office, did you allow space for required fire alarm control panel? Cross-reference your floor plan with the building elevations and sections – sometimes a floor plan may imply a certain roof or window layout, which the elevations need to reflect. A classic error is a window shown on floor plan but missing on elevation, or vice versa. Also verify that all tags on the plan (door numbers, window numbers, etc.) correspond to schedules and that those schedules are complete. Get a second set of eyes – a peer reviewer or colleague – to review the floor plans; they might catch things you missed (like a missing dimension or an oddly placed light switch symbol if you have electrical on it). Taking the time for this QA/QC saves expensive corrections during construction and preserves your credibility when the plans go to the city and builder.

By following these best practices, developers and architects can produce high-quality site plans, plot plans, and floor plans that not only pass regulatory scrutiny with flying colors but also serve their intended purposes of communication and guidance. Good plans reduce misunderstandings, change orders, and delays. They also enhance collaboration among the project team and with authorities, as clear plans are easier to review and approve.

Conclusion

Site plans, plot plans, and floor plans are three foundational plan types in real estate development and architecture – each with a unique role. Site plans paint the big picture of a development, aligning it with the land and ensuring zoning compliance and harmonious site design. Plot plans drill down to the parcel level, confirming that every structure sits where it should legally and precisely, under the umbrella of surveys and lot-specific regulations. Floor plans zoom inside the buildings, shaping the lived experience of spaces and guaranteeing that the construction meets building codes and functional needs. Together, these plans move a project from concept to reality: from the broad strokes of what can be built on a piece of land, to the fine details of how to build it and use it.

For U.S.-based professionals – developers seeking project approvals, architects designing to both inspire and comply, and investors assessing project viability – understanding the distinctions between site, plot, and floor plans is more than academic. It translates to practical success: smoother approvals by addressing the right concerns on the right plan, cost savings by catching issues on paper first, and better outcomes by planning appropriately at every scale of development. In the U.S., where zoning ordinances and building codes are rigorous and multi-layered, leveraging the strengths of each plan type ensures no aspect is overlooked – the site plan covers the zoning and site engineering aspects, the plot plan covers the surveying and lot compliance detail, and the floor plan covers the architectural and occupant-centric details within the building.

From concept through construction and even into marketing and operations, professionals will encounter these plans repeatedly. By following the best practices outlined – from accurate surveying and clear drafting to conscientious code-checking – one can create site plans, plot plans, and floor plans that are not only drawings on paper but effective tools that guide projects to fruition. In real estate development, well-executed plans lead to well-executed projects. With the information and tips provided in this article, U.S. real estate developers, architects, and investors should be better equipped to compare and utilize site, plot, and floor plans to their full advantage, ensuring projects that are compliant, efficient, and ultimately successful.
