Multifamily Site Plan Anatomy: What Lenders and Planning Commissions Actually Evaluate

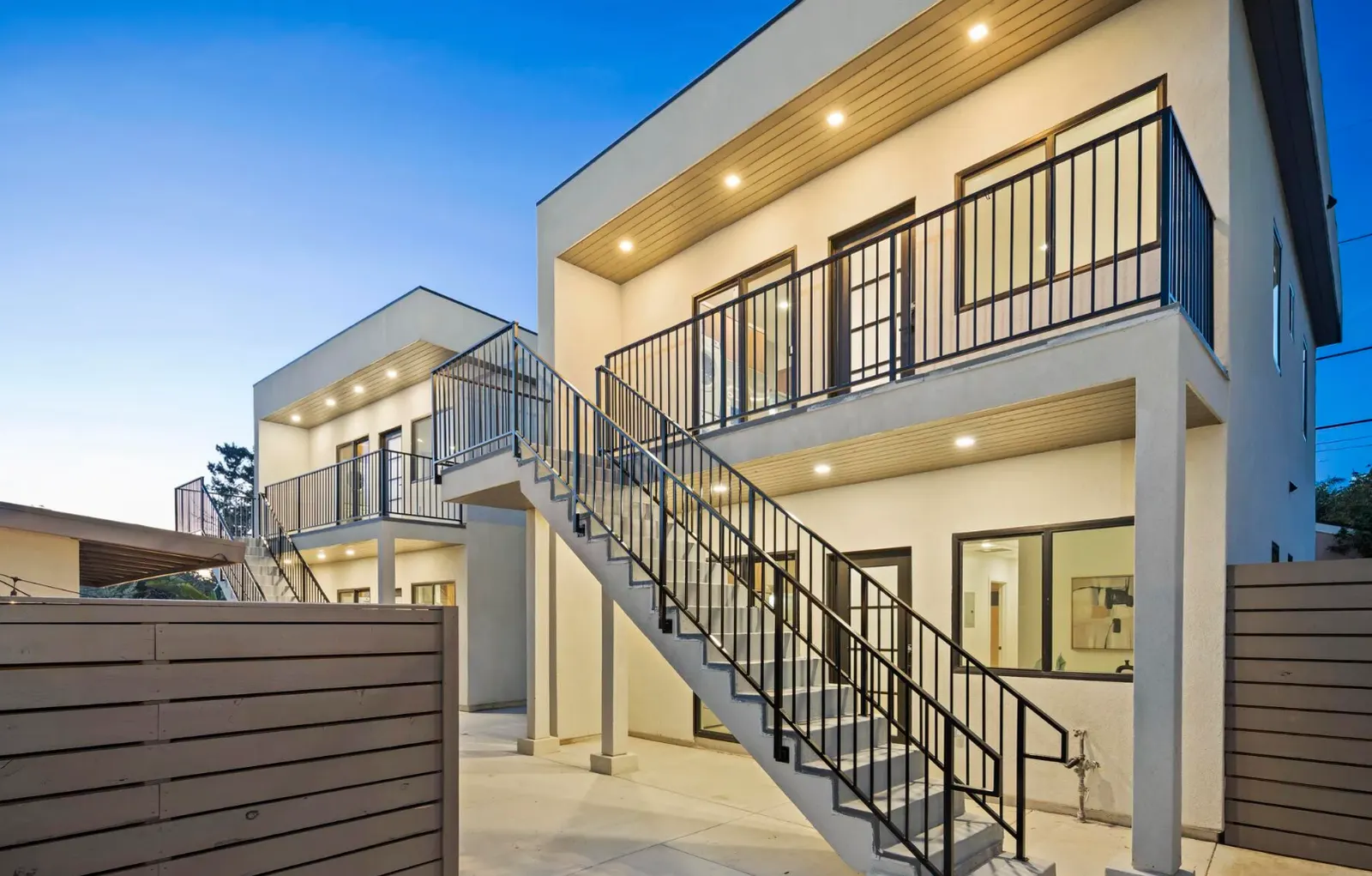

Modern two-story multifamily building with exterior staircase, balconies, and wood privacy fencing a

A site plan is not a drawing. It is a financial instrument — one that simultaneously serves as a regulatory application, a collateral document, and the single artifact upon which hundreds of millions of dollars in capital allocation decisions ultimately turn. Yet most developers treat it as an architectural exercise, delegating it to design teams long before their capital partners or municipal reviewers ever weigh in. That sequencing error explains why 95% of multifamily developers experiencing construction delays in late 2024 cited permitting as the primary cause, according to the NMHC's quarterly construction survey — the highest figure recorded since the survey launched in 2022.

The disconnect runs deeper than most industry participants acknowledge. With over one million apartment units under construction nationally and a record 672,000 completions logged in 2024 alone, the multifamily pipeline has never been larger or more complex. Institutional capital — Fannie Mae deployed $74 billion in multifamily financing in 2025, Freddie Mac topped $77 billion — flows freely toward projects that clear both regulatory and underwriting gates. The projects that stall, and the equity that evaporates, almost always trace back to the same origin: a site plan that failed one audience while trying to satisfy the other.

What the bank actually sees when it opens your site plan

Institutional lenders do not evaluate site plans the way architects do. A Fannie Mae DUS lender or CMBS originator looks at a site plan and sees a matrix of collateral risk factors, each one mapped to a specific third-party report requirement.

Density and unit count are verified against the zoning report — not for design elegance, but because any nonconformity triggers Freddie Mac's legal review protocols under Chapter 8.5 of its Seller/Servicer Guide, potentially reclassifying the loan as pre-review and compressing available leverage. A legally nonconforming property must demonstrate full rebuilding rights after casualty loss, or the appraised value takes a haircut that can reduce loan proceeds by 10-20%. This is why rigorous zoning due diligence is not optional — it is the threshold question that determines whether a project is financeable at all.

Parking ratios reveal the tension between municipal reform and lender conservatism. San Francisco eliminated parking minimums in 2018; Minneapolis followed in 2021. Yet lenders still underwrite suburban Class A projects at 1.5 to 2.0 spaces per unit and expect at least 0.5 to 1.0 in transit-rich urban locations. The gap between what a city permits and what a lender demands creates a design constraint that no variance can resolve — the site plan must thread both needles simultaneously.

Unit mix is where pro forma modeling meets demographic reality. Lenders favor a roughly 2:1 ratio of two-bedroom to one-bedroom units because two-bedrooms attract the broadest renter demographic, generate the lowest turnover, and produce the most stable cash flow. Heavy studio concentrations raise red flags for transience risk. Heavy three-bedroom concentrations raise maintenance-cost assumptions. Agency lenders do not prescribe ratios explicitly, but the required appraisal and market study will benchmark the proposed mix against local rent comps and absorption patterns — and any misalignment compresses underwritten NOI.

Stormwater management, ADA compliance, and access and egress are evaluated through the Property Condition Assessment (ASTM E2018), which both agencies require. Freddie Mac goes further, mandating a moisture management plan if any water intrusion is identified and a Physical Risk Report (Form 1108) assessing climate exposure. These are not box-checking exercises. Deficiencies in any category trigger immediate repair reserves at closing, increased replacement reserve deposits — typically $250 to $350 per unit annually — and, in severe cases, loan declination. A site plan with unresolved drainage issues or inadequate fire apparatus access is not a design flaw. It is a dead deal.

The planning commission operates on a different logic entirely

Where lenders price risk, planning commissions manage political and regulatory compliance. The evaluation framework is no less rigorous, but its incentive structure points in a fundamentally different direction.

Zoning conformance is the threshold test. Staff will map the proposed development against every dimensional standard in the applicable zone: density caps (typically 15-60 units per acre for multifamily districts), floor area ratio limits, height restrictions, setback requirements, and lot coverage maximums. The UC Berkeley Terner Center found that nearly 70% of California jurisdictions using FAR for multifamily set it between 0.26 and 1.0 — restrictive enough that many proposed projects require variances before the first hearing.

When a project cannot conform by right, the conditional use permit process introduces what lenders consider the most dangerous variable in development: discretionary political approval. A variance, once granted, runs with the land and cannot be revoked. A conditional use permit can be. As veteran hard money lender Dan Harkey has written bluntly, "From a lender's or buyer's point of view, variances are much safer than conditional use permits." The distinction matters enormously for collateral valuation, and it shapes how experienced developers approach their feasibility studies from the earliest stages.

Traffic impact assessments are triggered when a project generates roughly 100 or more peak-hour trips — equivalent to approximately 150 apartment units, per the ITE's recommended practice. The study evaluates trip generation, intersection level of service, and sight distances, and its conclusions can force unit count reductions, road improvements funded by the developer, or outright denial. Environmental review adds another layer. California's CEQA applies to every discretionary action; researchers have found that 85% of CEQA lawsuits were filed by organizations with no environmental advocacy record, and 80% targeted infill development. Environmental phase I and II assessments required by lenders often overlap with, but do not substitute for, the environmental review that planning commissions demand.

Infrastructure capacity — sewer, water, schools, stormwater — represents the most intractable constraint in high-growth markets. Adequate public facilities ordinances in jurisdictions like Montgomery County, Maryland, and throughout Florida can halt projects entirely when system capacity is exceeded. Of the 30,000 unbuilt multifamily units sitting in Montgomery County's approved pipeline, 36% received approval more than a decade ago. Many will never be built.

Where both systems collide — and where deals die

The entitlement process is where the municipal timeline and the capital stack timeline diverge most violently. Federal Reserve Bank of Atlanta research found that the average multifamily project spends 15.3 months in planning and permitting before breaking ground — longer than the construction phase itself. RAND Corporation data sharpens the picture: California projects average 48.9 months from inception to completion versus 27 months in Texas, a 22-month gap driven almost entirely by predevelopment delays. Each month of that gap costs approximately $1,284 per unit in carrying costs alone.

This is where the concept of basis risk becomes concrete. Unentitled land trades at roughly 60% of its fully entitled value, according to development industry frameworks — meaning the entitlement process itself accounts for 40% or more of land value creation. Yet that value creation is entirely contingent on a political process that most institutional lenders refuse to finance. Fannie Mae, Freddie Mac, and CMBS conduits will not lend on unentitled land. Banks will, selectively, but only with full recourse, short terms, and maximum LTVs of 50-65%. The FDIC's supervisory guidelines cap raw land loans at 65% LTV and land development loans at 75%. A highest and best use study that assumes entitlement success is, from a lender's perspective, a speculative document until the approvals are recorded.

The practical consequence is a funding gap that developers must bridge with equity — equity that earns zero return during the entitlement period while absorbing consultant fees, property taxes, and carrying costs. Government regulation at all levels now accounts for 40.6% of multifamily development costs, per NMHC and NAHB research. In California, municipal impact fees alone average $29,000 per unit; in Texas, they average less than $1,000. These cost differentials, combined with timeline differences, explain why Innowave data shows multifamily construction starts in Sun Belt markets running approximately 2.3 times higher per capita than in coastal gateway cities, despite comparable demand fundamentals.

How does a three-month entitlement delay actually propagate through a deal? On a $100 million project financed at current rates, it adds roughly $2 million in interest expense. Contractors reprice their bids. Leasing windows shift. Demographic analysis that supported the original absorption rate assumptions becomes stale. A development that penciled at a 15% IRR can slide to single digits before a shovel ever hits dirt — which is precisely why sophisticated developers treat construction cost estimation and cap rate analysis as iterative exercises, revisited at every entitlement milestone rather than locked at project inception.

What separates a bankable site plan from one that stalls

The developers who move through both systems efficiently share a common discipline: they design for the lender and the planning commission simultaneously, treating the site plan as a document that must pass dual underwriting.

A bankable site plan conforms to existing zoning wherever possible, avoiding the discretionary approval process entirely. It includes complete traffic studies, environmental assessments, hydrology reports, and utility capacity confirmation before formal submission — because any gap discovered post-application resets the clock. It engages a general contractor during design, not after approval, to prevent the distressingly common scenario where an approved plan turns out to be unbuildable at the approved budget. RAAM Construction's CEO has described this pattern repeatedly: developers spend months and significant capital securing entitlements for plans that cannot be constructed as designed.

The site plan must also work backward from permanent financing requirements. If a stabilized property needs to generate a 1.25x debt service coverage ratio at a 6.5% permanent loan rate to achieve the target loan-to-value, the approved unit count, building configuration, and amenity package must support the necessary NOI. That calculation depends on accurate market analysis — local rent comps, absorption rate analysis, and demographic trends — embedded in the design process from day one, not layered on after the architecture is finished.

The current market makes this discipline more consequential than ever. Approximately $90 billion in multifamily debt matures in 2026, much of it originated in a sub-5% rate environment. Developers completing projects into this refinancing wave face permanent loan proceeds that may not cover construction debt — a gap that widens with every month of entitlement delay. The FHFA responded by raising GSE multifamily lending caps to $88 billion each for 2026, a 20% increase, but capital availability does not solve the fundamental problem. A site plan that cannot clear both the planning commission dais and the underwriting committee desk is not a development proposal. It is an expensive option on a political outcome — and in 2026, the premium on that option has never been higher.

Planning a multifamily development? Explore our affordable housing site plan services to deliver lender-ready documentation that clears both planning commissions and underwriting desks.

Sources:

• Fannie Mae — Multifamily Selling & Servicing Guide, Property Condition Rating standards (1-to-5 scale), legal conforming use requirements, Phase I ESA requirements (ASTM E1527-21, 180-day validity)

• Freddie Mac — Multifamily Seller/Servicer Guide Chapter 8, December 2024 Property Condition Report repair classification update (Critical/Priority/Routine), radon and asbestos sampling mandates

• Fannie Mae — Form 4251, Environmental Due Diligence Requirements (April 2025 revision)

• Fannie Mae — Selling Guide B4-1.3-04, Site Section of the Appraisal Report (ALTA/NSPS survey requirements, encroachment/easement standards)

• FHFA — Multifamily Mortgage Underwriting and Acquisitions supervisory guidance; 2026 GSE multifamily lending caps ($88 billion each)

• HUD — April 2024 Federal Flood Risk Management Standard rule (expanded floodplain definitions beyond FEMA 100-year boundary)

• HUD Exchange — Environmental Review program requirements for federally assisted multifamily projects
